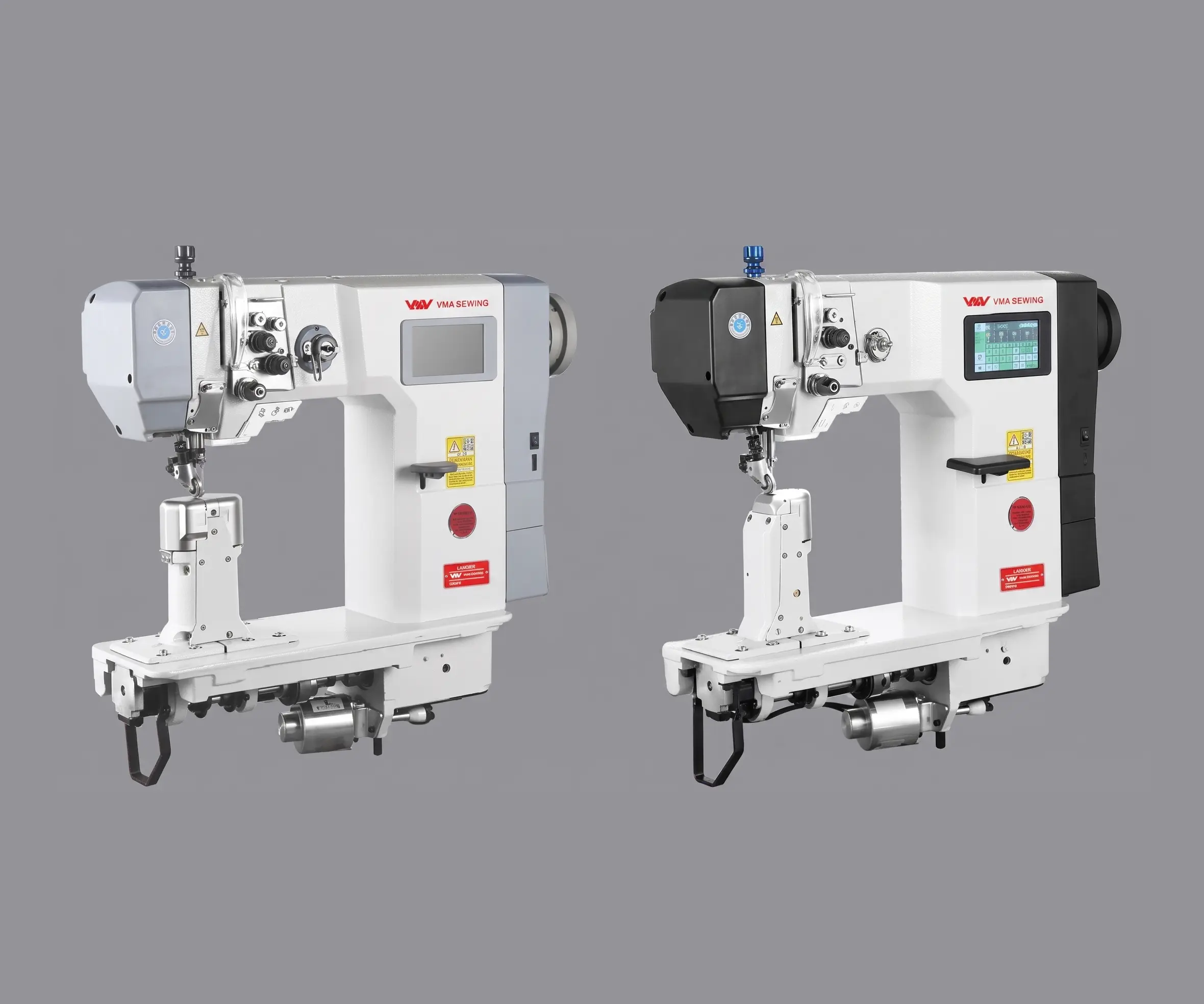

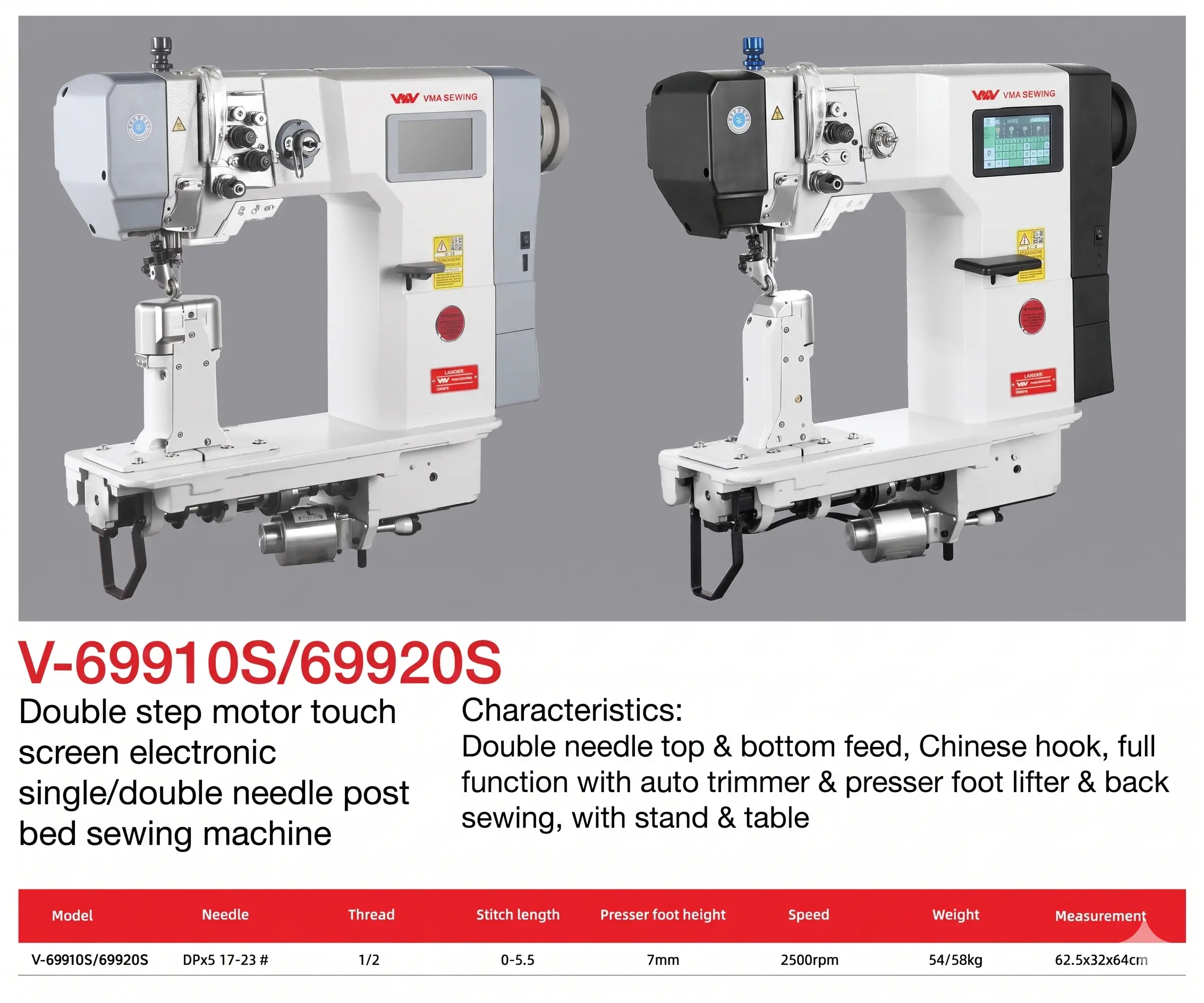

V-69910S / V-69920S Post bed sewing machine
Detailed Description
The V-69910S/69920S series from VMA Sewing is engineered to meet the high demands of professional leather, footwear, and upholstery production. Featuring a double step motor system and an integrated touch screen, it allows for highly precise, programmable, and repeatable stitching. The post bed design makes it ideal for sewing three-dimensional and curved materials. The machine's top and bottom feed mechanism, combined with a Chinese hook, ensures smooth, even material feeding without slipping. Complete with automated functions to minimize manual operations, this unit is supplied with a stand and table for immediate industrial use.
Technical Specifications
| Model | Needle | Thread | Stitch Length | Presser Foot Height | Speed | Weight | Measurement |
| V-69910S / V-69920S | DPx5 17-23# | 1 / 2 | 0 - 5.5 mm | 7 mm | 2500 RPM | 54 / 58 kg | 62.5 x 32 x 64 cm |
Key Features
Double Step Motor System: Provides highly precise control, quiet operation, and low energy consumption.
Touch Screen Interface: Easy-to-read digital panel for quick parameter adjustments and pattern controls.
Post-Bed Design: Highly suitable for sewing complex, curved, or three-dimensional shapes such as footwear and bags.
Full Automatic Functions: Includes automated presser foot lifter, thread trimmer, and back-sewing to increase efficiency and reduce operator fatigue.
Top & Bottom Feed Mechanism: Ensures even feeding of difficult-to-sew and heavy materials.
Complete Assembly: Supplied fully equipped with a durable stand and table for immediate installation.
