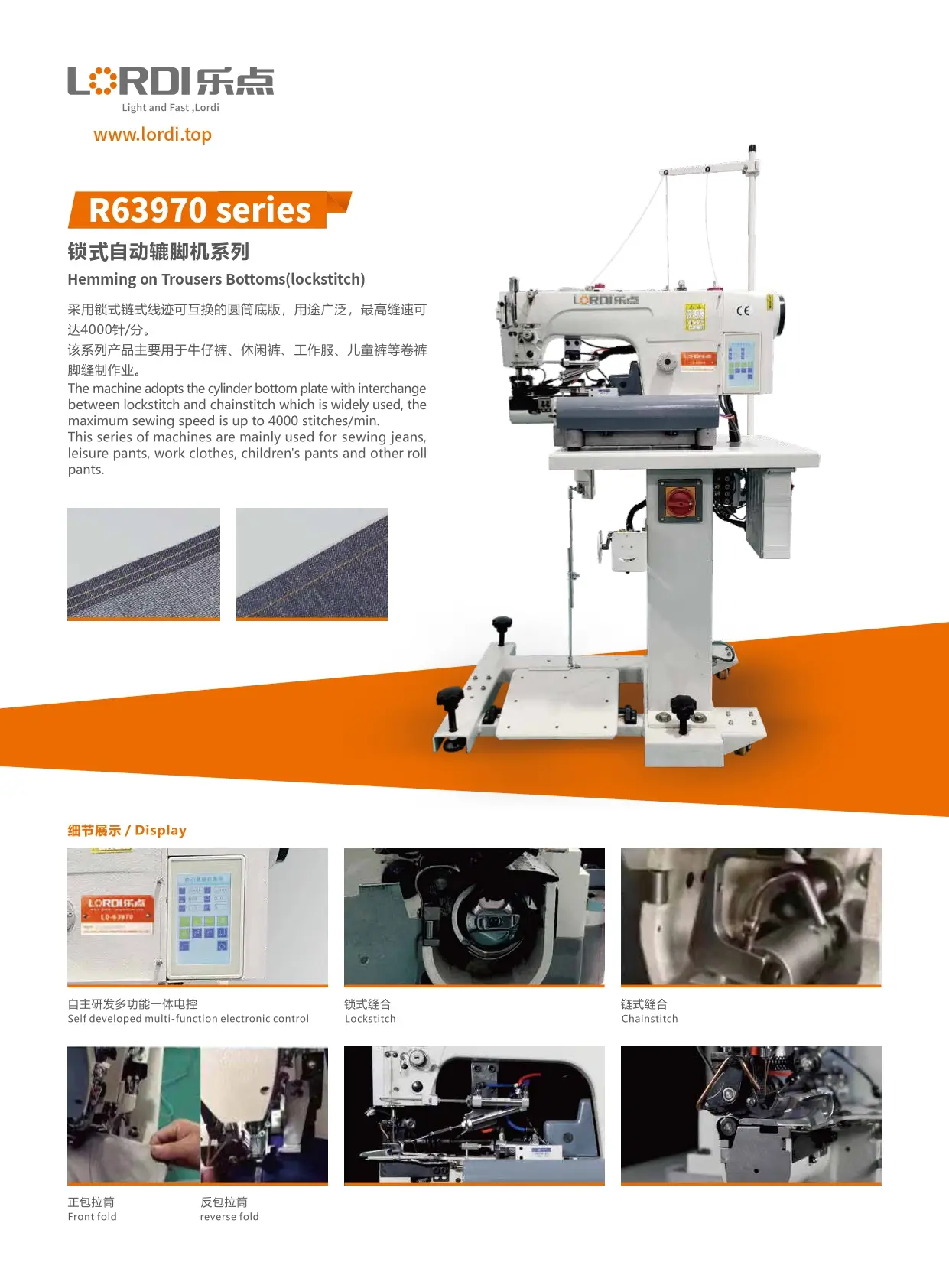

R63970 Hemming on Trousers Bottoms (Lockstitch / Chainstitch)
Detailed Description
The R63970 series is highly specialized for automated bottom hemming operations on various types of trousers. The machine utilizes a flexible cylinder bottom plate that allows for a unique interchange between lockstitch and chainstitch setups (depending on the model). It is widely integrated into industrial garment lines and is primarily used for high-speed sewing on jeans, leisure pants, work clothes, children's pants, and other roll-edge pants.

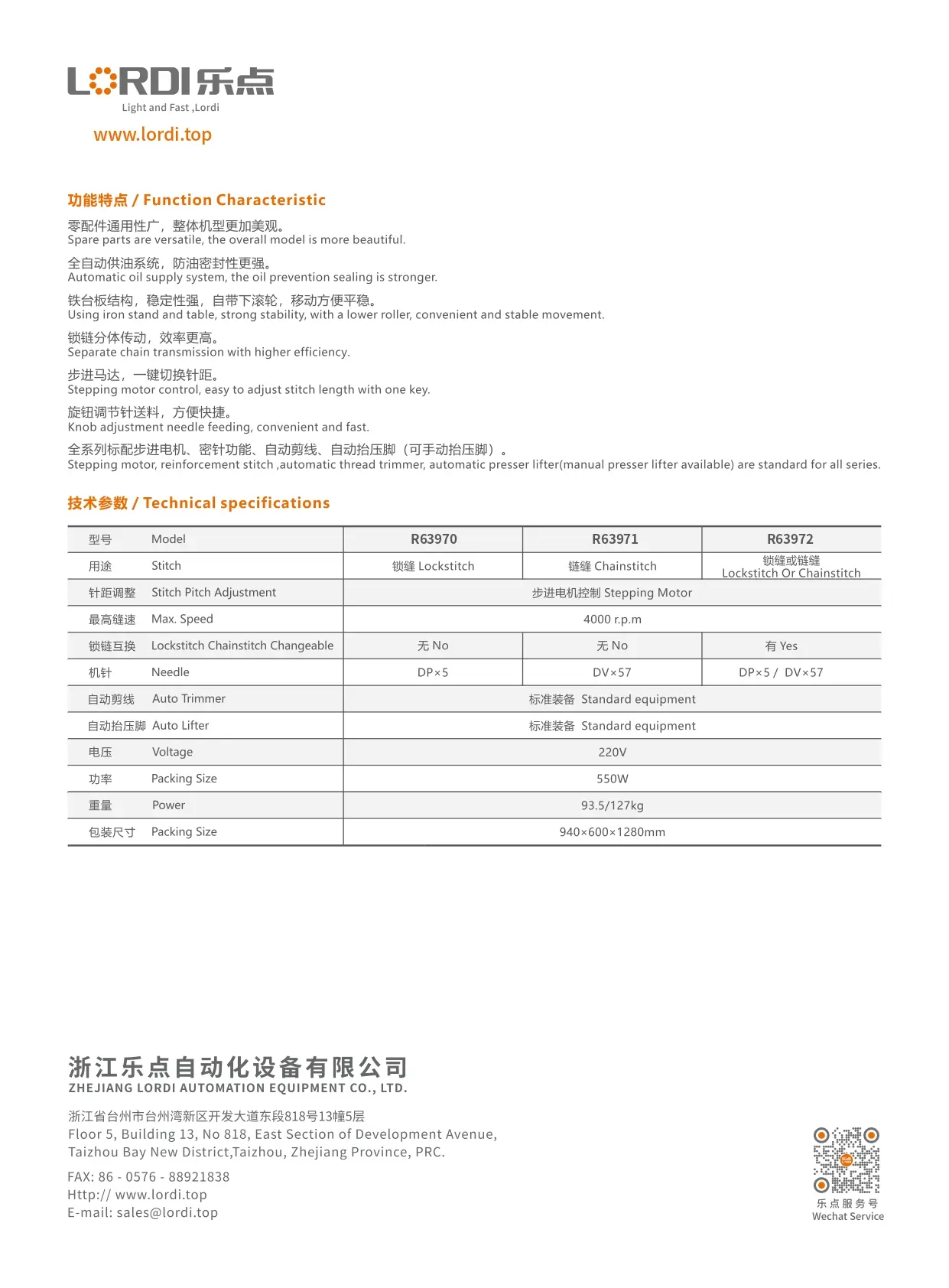

Technical Specifications
| Technical Parameters | R63970 | R63971 | R63972 |
| Stitch Type | Lockstitch | Chainstitch | Lockstitch Or Chainstitch |
| Stitch Pitch Adjustment | \multicolumn{3}{c | }{Stepping Motor Control} | |
| Max. Speed | \multicolumn{3}{c | }{4000 r.p.m} | |
| Lockstitch Chainstitch Changeable | No | No | Yes |
| Needle Type | DP×5 | DV×57 | DP×5 / DV×57 |
| Auto Trimmer | \multicolumn{3}{c | }{Standard Equipment} | |
| Auto Lifter | \multicolumn{3}{c | }{Standard Equipment} | |
| Voltage | \multicolumn{3}{c | }{220V} | |
| Power (Motor) | \multicolumn{3}{c | }{550W} | |
| Weight (Net/Gross) | \multicolumn{3}{c | }{93.5 / 127 kg} | |
| Packing Size | \multicolumn{3}{c | }{$940 \times 600 \times 1280\text{ mm}$} |
Key Features
Versatile Spare Parts: Designed with highly versatile spare parts, giving the overall machine a more streamlined and beautiful appearance.
Automatic Lubrication System: Features an automatic oil supply system with enhanced oil-prevention sealing.
Stable Iron Stand and Table: Built with a heavy-duty iron stand and table featuring lower rollers for convenient, highly stable movement.
Separate Chain Transmission: Employs a separate chain transmission setup for higher operational efficiency.
Stepping Motor Control: Provides easy stitch length adjustment with a single key via advanced stepping motor technology.
Knob Adjustment Needle Feeding: Features a manual knob system for convenient and rapid needle feeding adjustments.
Standardized Automation: Stepping motor, reinforcement stitch, automatic thread trimmer, and automatic presser lifter (with manual presser lifter availability) come as standard configuration across the entire series.
Flexible Folding Options: Supports both front fold and reverse fold operations.
