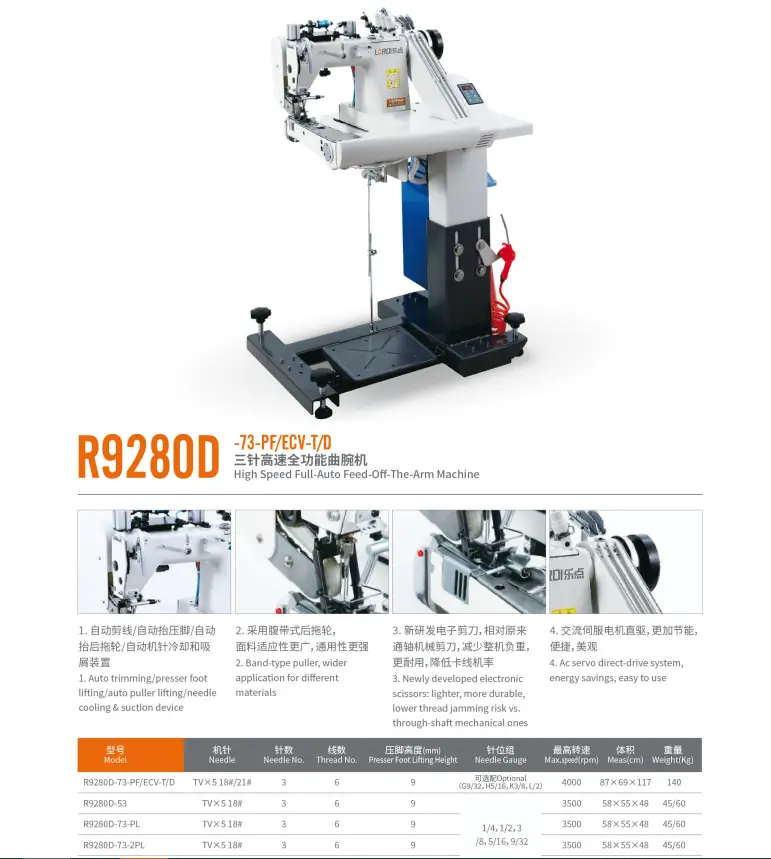

R9280D High Speed Full-Auto Feed-Off-The-Arm Machine
Detailed Description
The R9280D series is engineered for high-efficiency garment manufacturing requiring a feed-off-the-arm setup (commonly used for lap seaming jeans, shirts, and heavy-duty workwear). It combines automated labor-saving functions with a powerful, quiet direct-drive motor system. The specialized electronic scissors and high-clearance presser foot lift make long production runs seamless, reliable, and highly productive.
Technical Specifications
| Model | Needle | Needle No. | Thread No. | Presser Foot Lifting Height (mm) | Needle Gauge | Max. Speed (RPM) | Meas. (cm) | Weight (Kg) |
| R9280D-73-PF/ECV-T/D | TV×5 18#/21# | 3 | 6 | 9 | Optional: (G9/32, H5/16, K3/8, L/2) | 4000 | $87 \times 69 \times 117$ | 140 |
| R9280D-53 | TV×5 18# | 3 | 6 | 9 | 1/4, 1/2, 3/8, 5/16, 9/32 | 3500 | $58 \times 55 \times 48$ | 45/60 |
| R9280D-73-PL | TV×5 18# | 3 | 6 | 9 | 1/4, 1/2, 3/8, 5/16, 9/32 | 3500 | $58 \times 55 \times 48$ | 45/60 |
| R9280D-73-2PL | TV×5 18# | 3 | 6 | 9 | 1/4, 1/2, 3/8, 5/16, 9/32 | 3500 | $58 \times 55 \times 48$ | 45/60 |
Key Features
Automated Multi-Functions: Features automatic thread trimming, automatic presser foot lifting, automatic puller lifting, needle cooling, and an integrated suction device.
Band-Type Puller: Utilizing a band-type puller provides a much wider application and smoother feeding for different types of materials.
Newly Developed Electronic Scissors: Lighter, more durable, and offers a lower thread jamming risk compared to traditional through-shaft mechanical cutting systems.
AC Servo Direct-Drive System: Delivers higher energy savings, elegant appearance, and easy-to-use operation.
