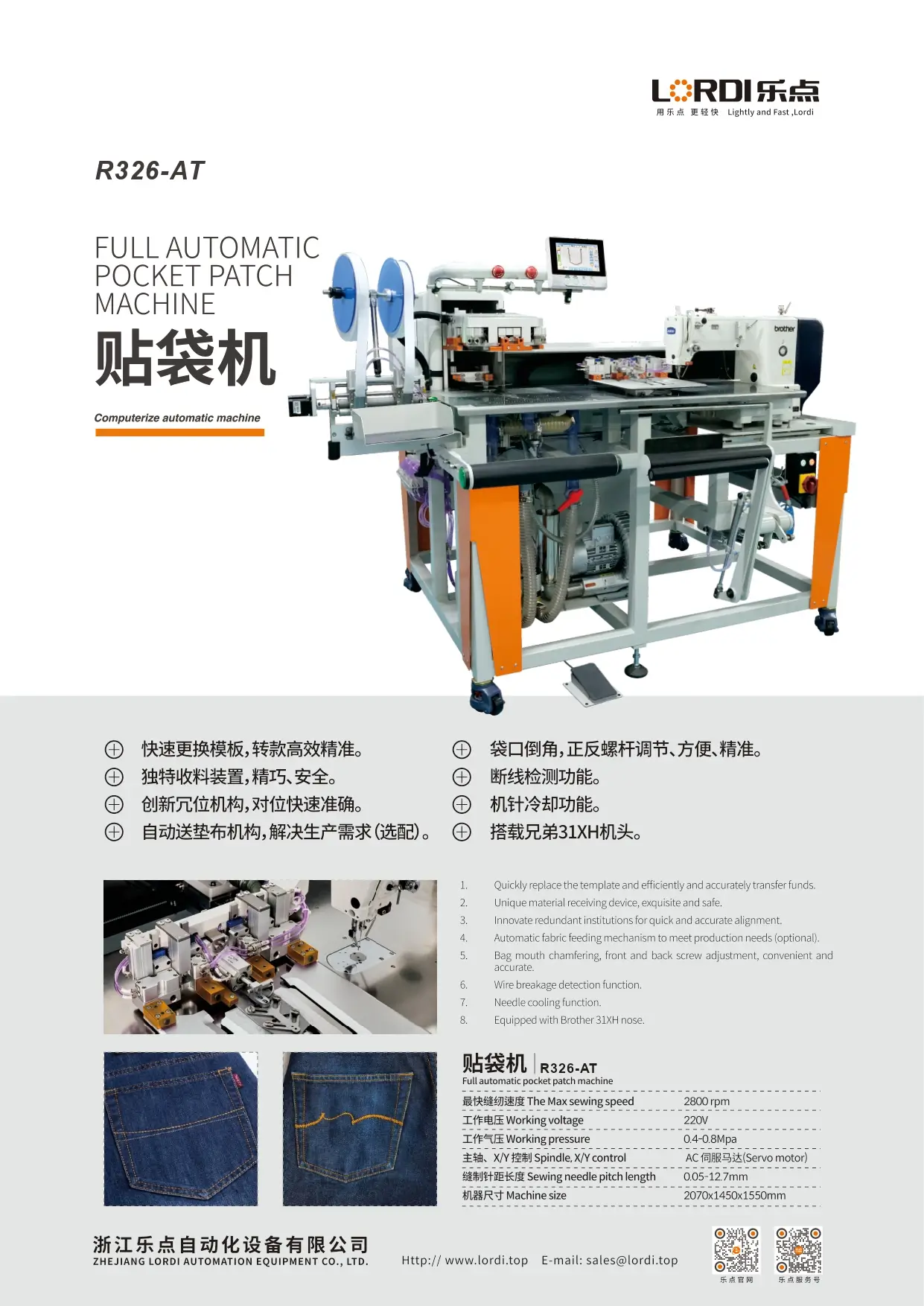

R326-AT Full Automatic Pocket Patch Machine (Computerized Automatic Machine)
Detailed Description
The R326-AT is a state-of-the-art full automatic pocket patch machine engineered by Zhejiang Lordi Automation Equipment Co., Ltd. It streamlines denim pocket attachment and decorative patching by automating fabric feeding, positioning, and stitching in one continuous workflow. Powered by an AC Servo Motor system, it offers manufacturers exceptional control over intricate stitch designs while significantly boosting daily factory output and reducing manual labor dependency.
Technical Specifications
| Technical Parameters | Specification Value |
| Max Sewing Speed | 2800 rpm |
| Working Voltage | 220V |
| Working Pressure | 0.4–0.8Mpa |
| Spindle, X/Y Control | AC 伺服马达 (Servo motor) |
| Sewing Needle Pitch Length | 0.05–12.7mm |
| Machine Size | $2070 \times 1450 \times 1550\text{ mm}$ |
Key Features
Quick Template Replacement: Quickly replaces the template and efficiently and accurately transfers materials/funds.
Unique Receiving Device: Features a unique material receiving device that is both exquisite and safe.
Innovative Alignment System: Innovates redundant institutions for quick and accurate alignment.
Automatic Fabric Feeding (Optional): Supports an automatic fabric feeding mechanism to meet specialized production needs.
Precision Adjustments: Bag mouth chamfering along with front and back screw adjustments make operation highly convenient and accurate.
Wire Breakage Detection: Integrated wire breakage detection function to prevent stitching errors.
Needle Cooling Function: Built-in needle cooling mechanism to handle high-speed friction and heavy materials.
Premium Sewing Head: Equipped with a high-performance Brother 31XH nose (sewing head).
