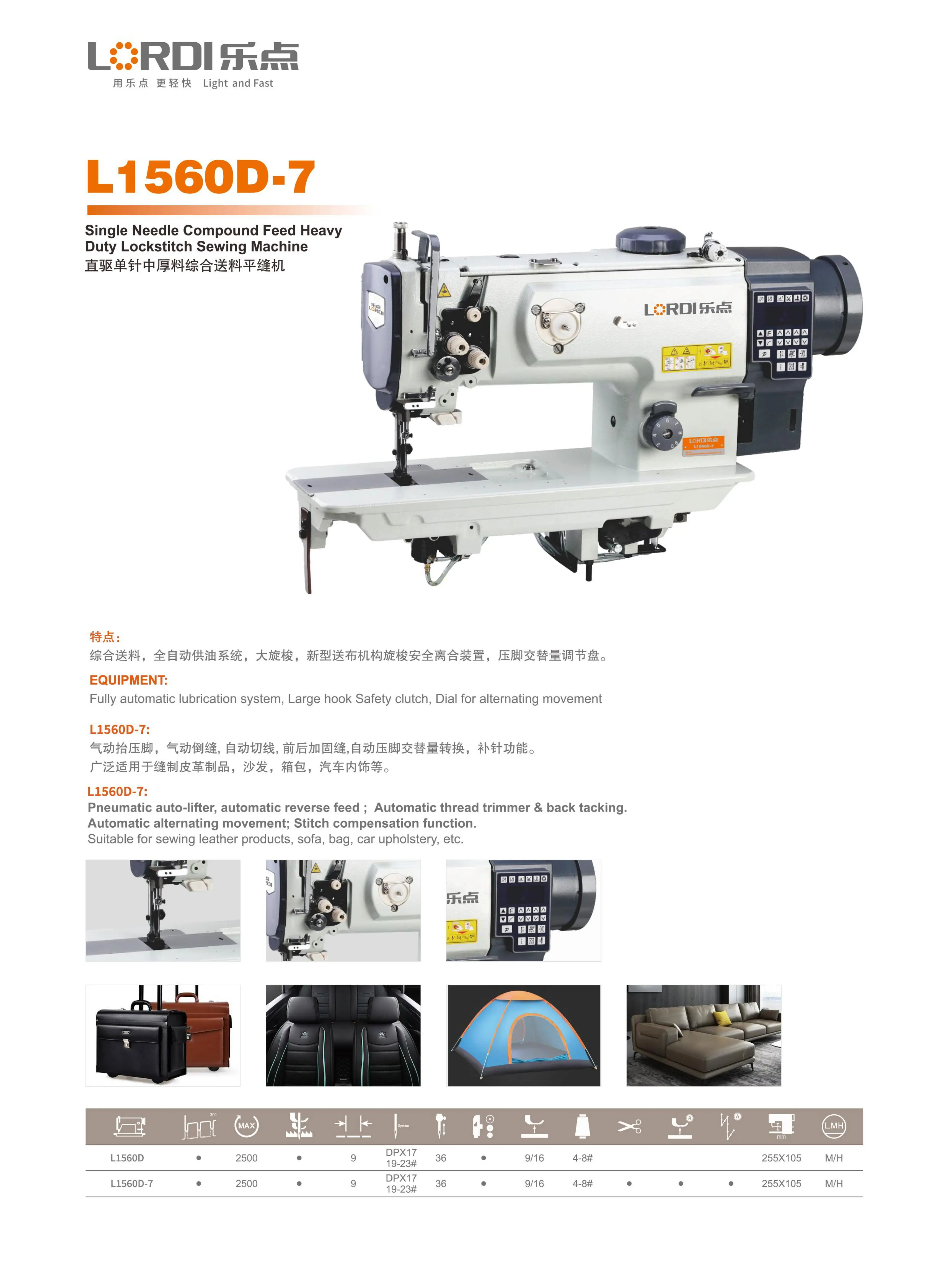

L1560D Single Needle Compound Feed Heavy Duty Lockstitch Sewing Machine
Detailed Description
The L1560D-7 model is a high-performance heavy-duty sewing machine tailored for industrial manufacturing. It features an advanced pneumatic auto-lifter and automatic reverse feed, along with an automatic thread trimmer and back tacking system. Its automatic alternating movement makes transitioning over varying material thicknesses seamless.
Common Applications:
Leather products
Sofas and home furniture
Bags and suitcases
Car upholstery
Heavy outdoor gear (tents, etc.)
Technical Specifications
| Model | Compound Feed | Max. Speed (RPM) | Automatic Lubrication | Max. Stitch Length | Needle Type | Needle Bar Stroke | Safety Clutch | Presser Foot Lift (Manual/Pneumatic) | Thread Size | Auto Trimmer | Auto Lifter | Back Tacking | Working Space | Material Weight |
| L1560D | • | 2500 | • | 9mm | DPX17 19-23# | 36mm | • | 9/16mm | 4-8# | — | — | — | $255 \times 105\text{ mm}$ | M/H |
| L1560D-7 | • | 2500 | • | 9mm | DPX17 19-23# | 36mm | • | 9/16mm | 4-8# | • | • | • | $255 \times 105\text{ mm}$ | M/H |
Key Features
Compound Feed Mechanism: Delivers stable and synchronized material feeding for multiple layers or heavy fabrics.
Fully Automatic Lubrication System: Ensures smooth operation, reduced wear, and extended machine lifespan.
Large Hook Safety Clutch: Protects the hook mechanism from damage during thread jams or heavy loads.
Dial for Alternating Movement: Allows for quick and easy adjustment of the presser foot alternating lift.
Stitch Compensation Function: Equipped with a precision stitch compensation feature for perfect seam quality.
