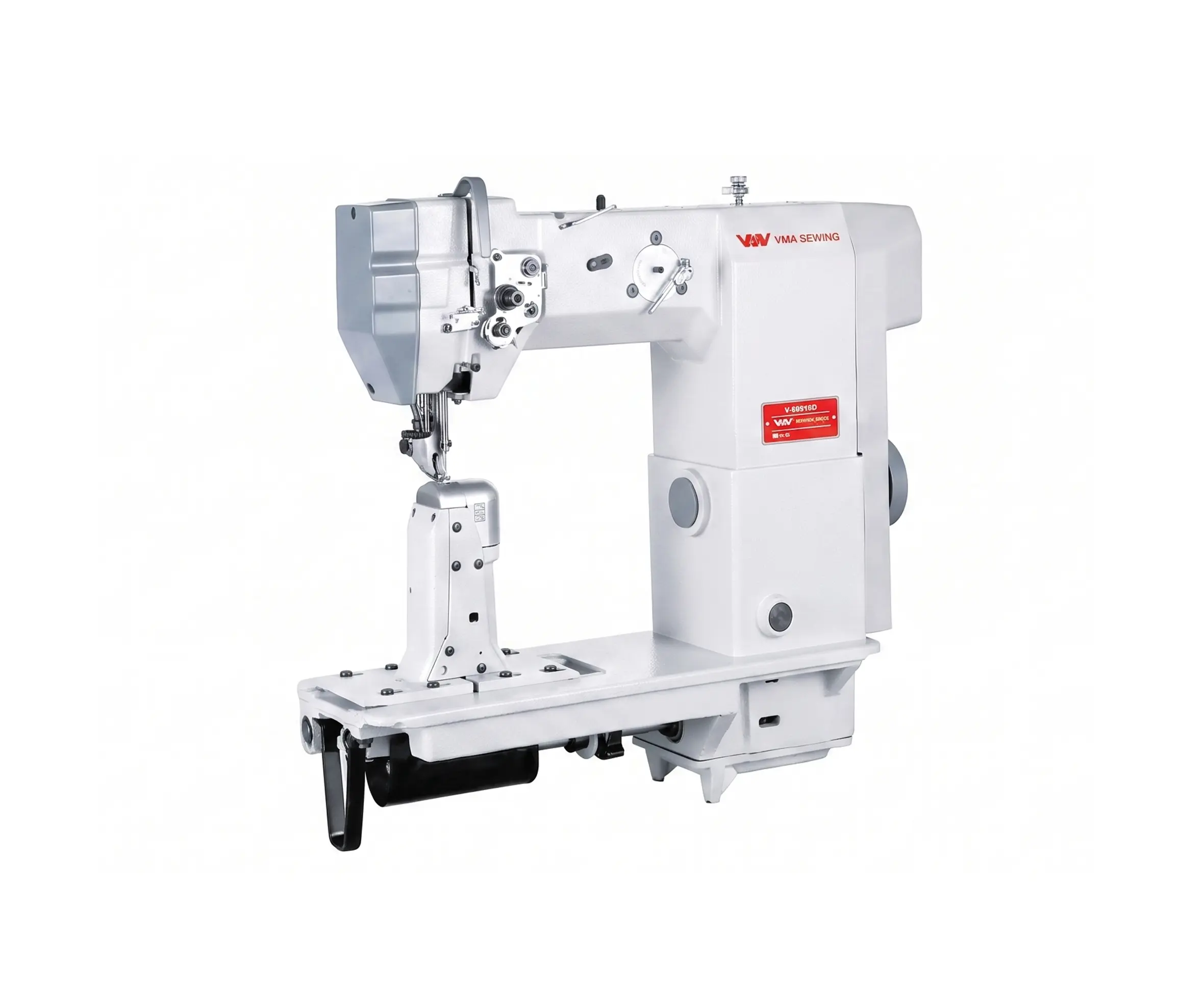

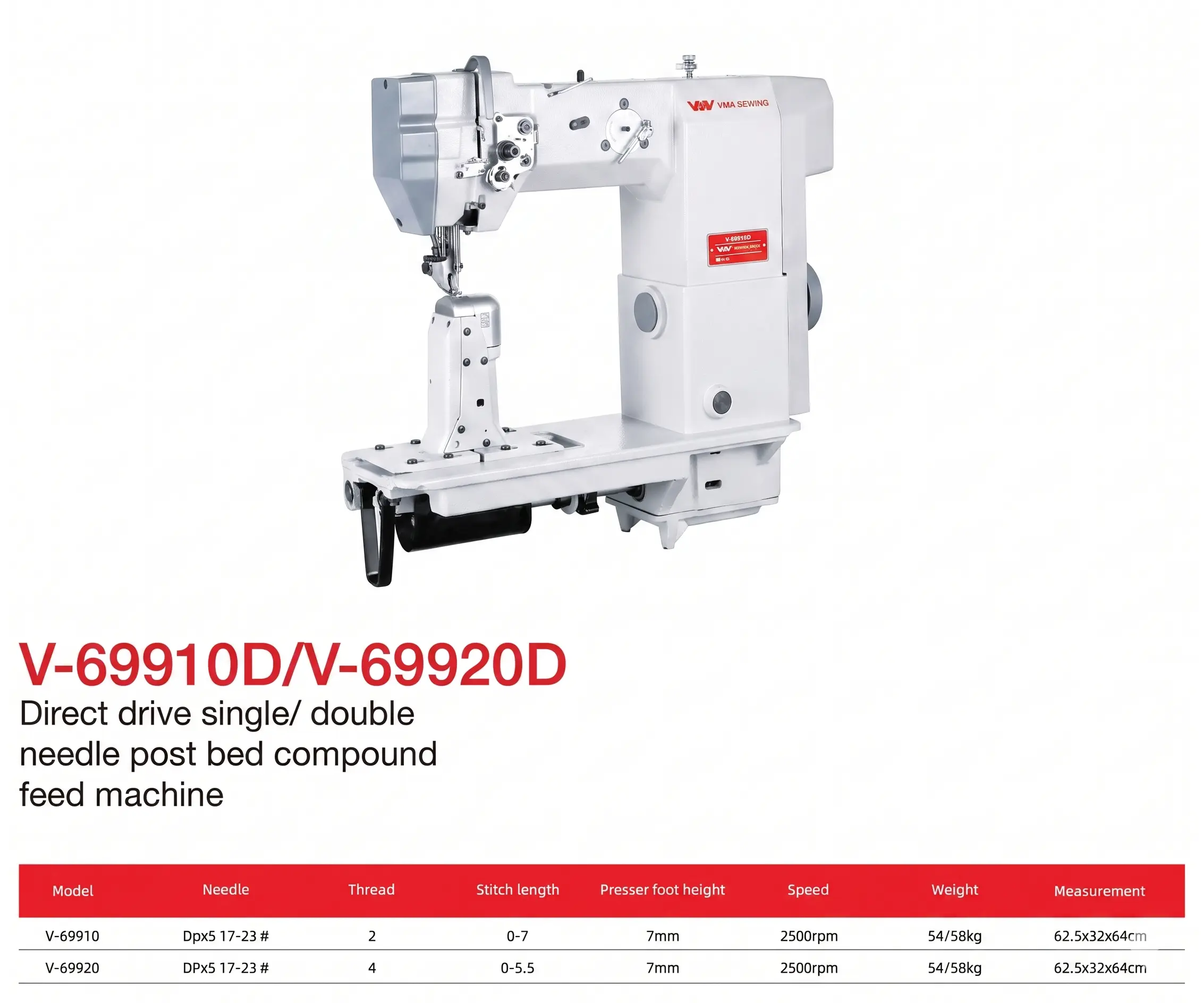

V-69910D / V-69920D Post-bed compound feed sewing
Detailed Description
The V-69910D / V-69920D series from VMA Sewing is engineered to meet the high demands of professional leather, footwear, and upholstery production. Featuring a direct-drive system, it ensures energy efficiency, reduced noise, and smooth, powerful operation. The post bed design makes it ideal for sewing three-dimensional and curved materials. The machine's compound feed mechanism ensures strong, consistent material feeding without slipping, even when working with multiple thick layers.
Technical Specifications
| Model | Needle | Thread | Stitch Length | Presser Foot Height | Speed | Weight | Measurement |
| V-69910 | DPx5 17-23# | 2 | 0 - 7 mm | 7 mm | 2500 RPM | 54 / 58 kg | 62.5 x 32 x 64 cm |
| V-69920 | DPx5 17-23# | 4 | 0 - 5.5 mm | 7 mm | 2500 RPM | 54 / 58 kg | 62.5 x 32 x 64 cm |
Key Features
Direct Drive Motor System: Delivers high energy efficiency, low vibration, and quiet operation.
Post-Bed Design: Highly suitable for sewing complex, curved, or three-dimensional shapes such as footwear, boots, and bags.
Compound Feed Mechanism: Ensures strong and even feeding of thick, multi-layered materials.
High-Speed Operation: Reaches up to 2,500 stitches per minute to maximize daily productivity.
Versatile Configuration: Available in single needle (V-69910D) and double needle (V-69920D) versions for flexible stitching applications.
