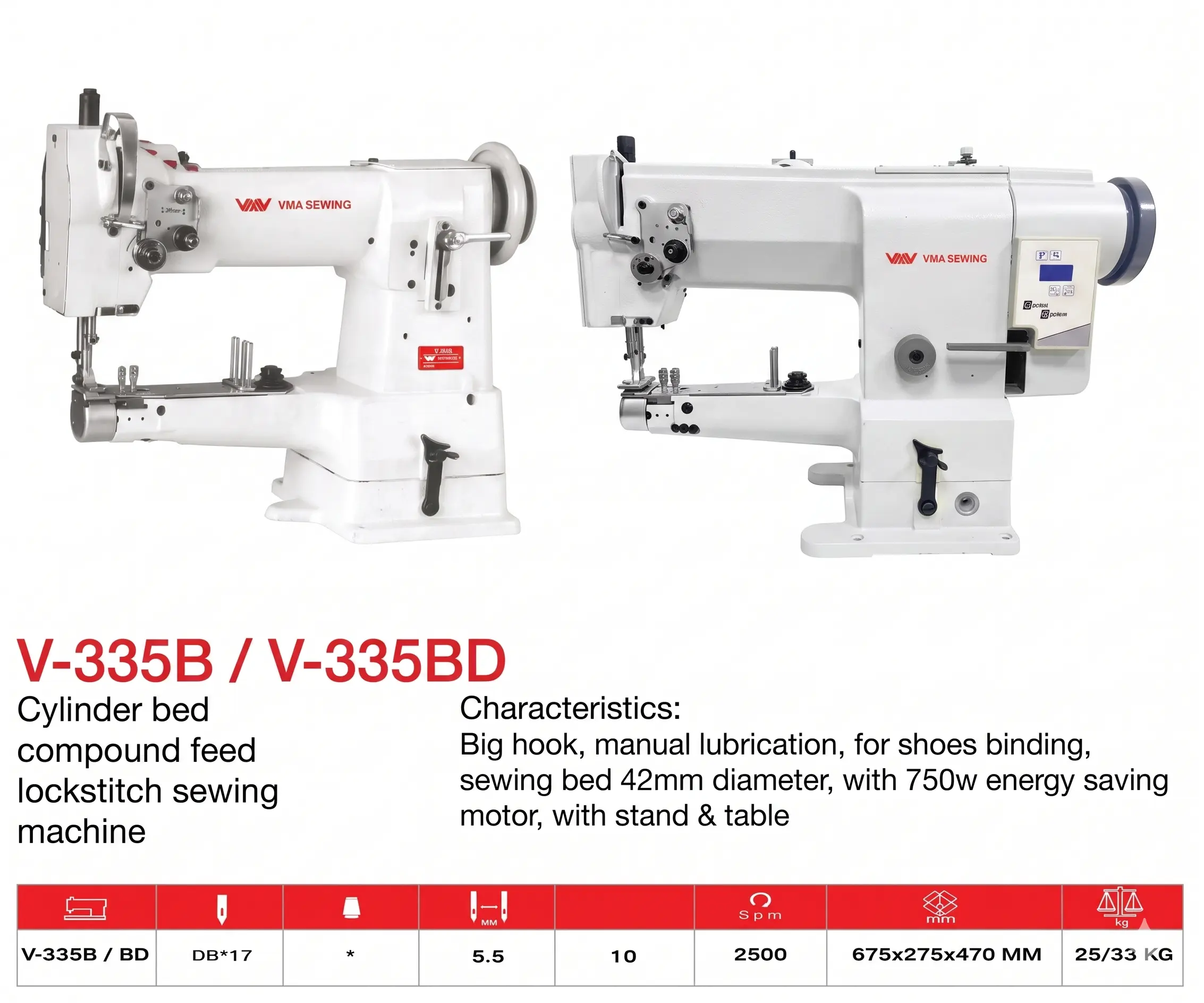

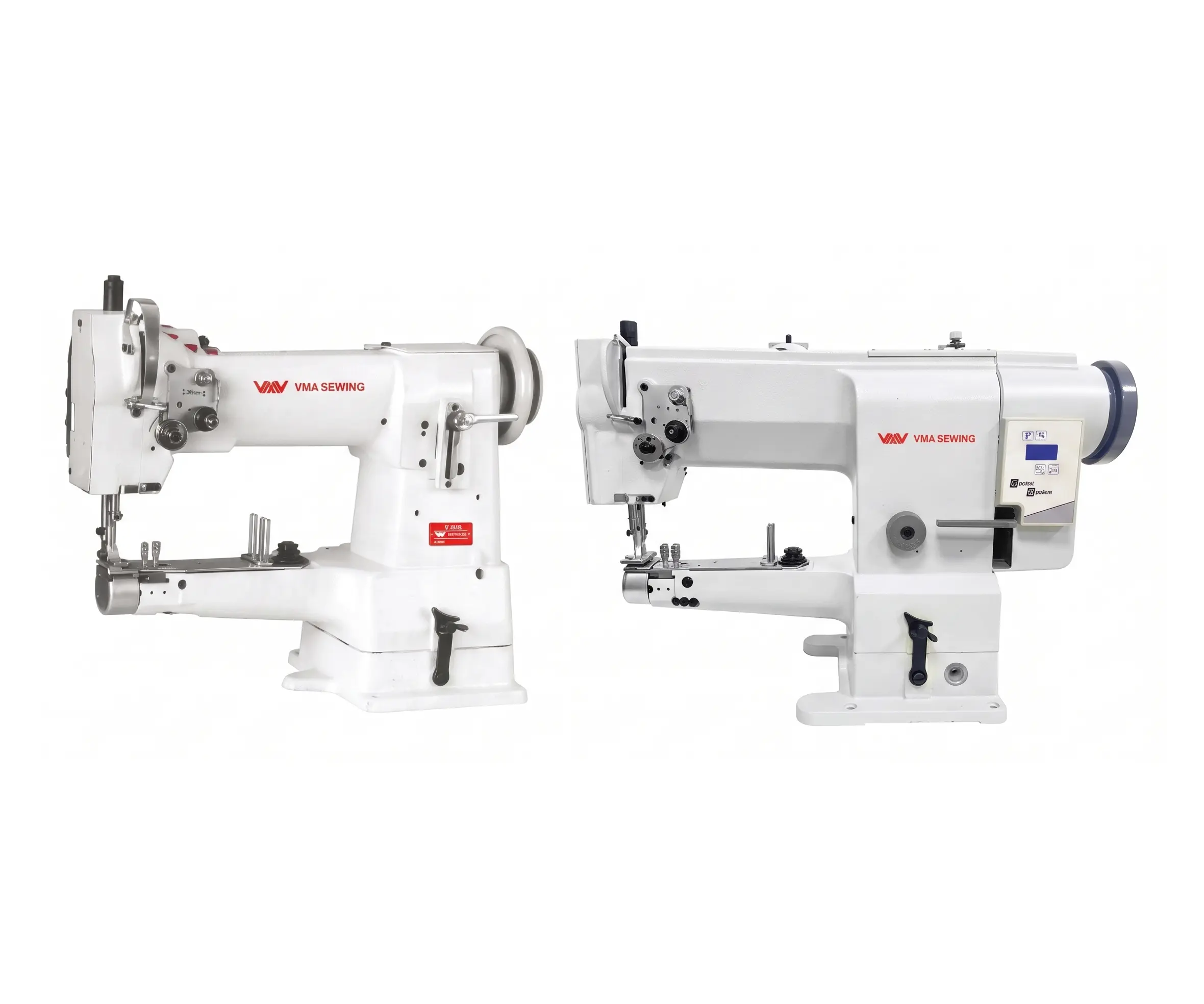

V-335B / V-335BD Cylinder Bed compound feed lockstitch sewing machine
Detailed Description
The V-335B / V-335BD series from VMA Sewing is engineered for operations that require binding and intricate stitching on three-dimensional, curved, or tubular items such as shoes, bags, and leather accessories. The cylinder bed design with its 42mm diameter allows operators to maneuver complex corners and tight areas effortlessly. Equipped with a powerful, big hook and compound feed mechanism, it ensures consistent stitch quality and prevents material slippage across thick layers. The unit operates on a 750W energy-saving motor, minimizing power consumption while providing the necessary torque for heavy-duty stitching.
Technical Specifications
| Model | Needle | Hook | Stitch Length | Max. Lift Height | Speed | Weight | Measurement |
| V-335B / BD | DB*17 | Big Hook | 5.5 mm | 10 mm | 2500 SPM | 25 / 33 kg | 675 x 275 x 470 mm |
Key Features
Slim Cylinder Bed (42mm Diameter): Ideal for sewing and binding tight curves, corners, and tubular products like shoes and small leather goods.
Compound Feed Mechanism: Ensures synchronized and even feeding of heavy, multiple layers of material.
Big Hook System: Allows for higher bobbin thread capacity and is suitable for sewing with thicker threads.
750W Energy-Saving Motor: Delivers powerful performance and high speeds while reducing power usage and noise.
Complete Setup: Supplied fully equipped with a durable table and stand for immediate installation.
