R3520-JG Sewing-auto Pocket Setter With Laser Cutting
Detailed Description
The R3520-JG series brings ultimate automation to precision pocket and placket creation. Engineered with a robust, high-power motor, this machine possesses exceptional thickness-handling capabilities, effortlessly penetrating heavy-duty materials while maintaining uniform stitch tension.
Operation is made highly accessible through a smart control panel that supports easy USB pattern uploads, minimizing manual configuration. To handle diverse design requirements, the machine offers an assortment of presser feet choices to match different sewing demands perfectly. At its core, the integration of a specialized laser device allows factories to automate complex pocket welting and placket setting processes, delivering clean, precise cuts alongside top-tier stitching quality to accelerate workshop productivity.

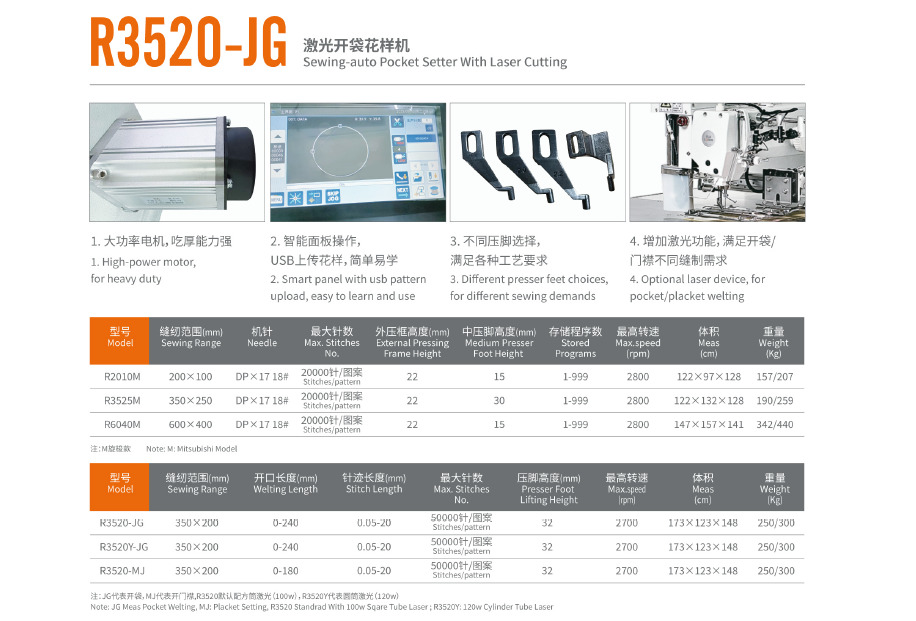

Technical Specifications
| Model | Sewing Range (mm) | Welting Length (mm) | Stitch Length (mm) | Max. Stitches No. (Stitches/pattern) | Presser Foot Lifting Height (mm) | Max. Speed (rpm) | Measurements (Meas) (cm) | Weight (Net/Gross) (Kg) |
| R3520-JG | 350 x 200 | 0 - 240 | 0.05 - 20 | 50000 | 32 | 2700 | 173 x 123 x 148 | 250 / 300 |
| R3520Y-JG | 350 x 200 | 0 - 240 | 0.05 - 20 | 50000 | 32 | 2700 | 173 x 123 x 148 | 250 / 300 |
| R3520-MJ | 350 x 200 | 0 - 180 | 0.05 - 20 | 50000 | 32 | 2700 | 173 x 123 x 148 | 250 / 300 |
Key Features
High-Power Heavy-Duty Motor: Equipped with a strong, high-capacity motor that delivers robust penetration power for heavy-duty and thick fabrics.
Smart Panel with USB Port: Features an intuitive digital smart panel supporting easy USB pattern uploads, making it quick to learn and simple to operate.
Versatile Presser Feet Choices: Offers multiple presser foot configurations to accommodate and satisfy various sewing and fabric demands.
Integrated Laser Device: Includes an optional high-precision laser cutting function specifically optimized for automatic pocket and placket welting.
