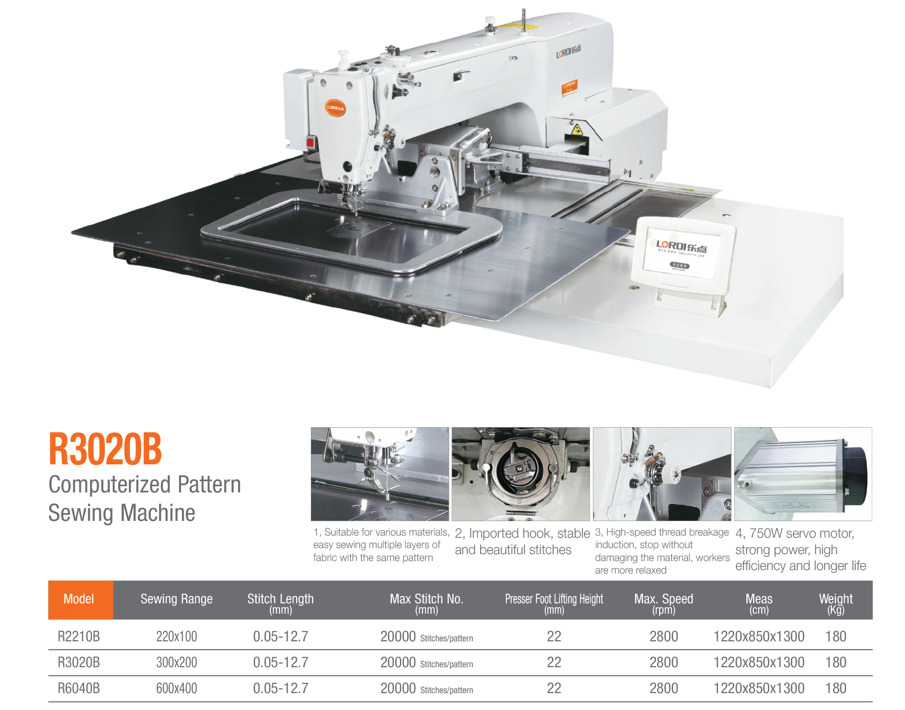

R3020B Computerized Pattern Sewing Machine
Detailed Description
The LORDI R3020B series brings elite automation and structural strength to complex industrial sewing applications. Driven by a robust 750W servo motor, this machine delivers consistent sewing power and a prolonged service lifespan under demanding factory workloads. It is highly versatile, maintaining uniform stitch patterns across a wide variety of materials, including dense, multi-layered textiles.
At the core of its stitching precision is an imported premium hook system that creates consistently stable and aesthetically beautiful stitches. To protect fabrics from accidental damage, the machine integrates a high-speed thread breakage induction system. The moment a thread snaps, the machine immediately stops operations without harming the material, allowing factory workers to manage large production lines with total peace of mind.
Technical Specifications
The specification table includes details for the main model R3020B along with its companion models in the same series:
| Model | Sewing Range (mm) | Stitch Length (mm) | Max. Stitch No. (Stitches/pattern) | Presser Foot Lifting Height (mm) | Max. Speed (rpm) | Measurements (Meas) (cm) | Weight (Kg) |
| R2210B | 220 x 100 | 0.05 - 12.7 | 20000 | 22 | 2800 | 1220 x 850 x 1300 | 180 |
| R3020B | 300 x 200 | 0.05 - 12.7 | 20000 | 22 | 2800 | 1220 x 850 x 1300 | 180 |
| R6040B | 600 x 400 | 0.05 - 12.7 | 20000 |
Key Features
Multi-Layer Material Flexibility: Highly suitable for various materials, making it easy to sew multiple dense layers of fabric using the same programmed pattern.
Premium Imported Hook: Equipped with a high-quality imported hook mechanism that guarantees exceptionally stable and beautiful stitches.
High-Speed Thread Breakage Induction: Intelligent sensors instantly detect broken threads and stop operation, protecting the material from damage and reducing worker stress.
750W Powerful Servo Motor: Built with a high-performance 750W servo motor that delivers strong power, elevated production efficiency, and a longer machine life.
