O5-4 / O5-5 Overlock Machine
Detailed Description

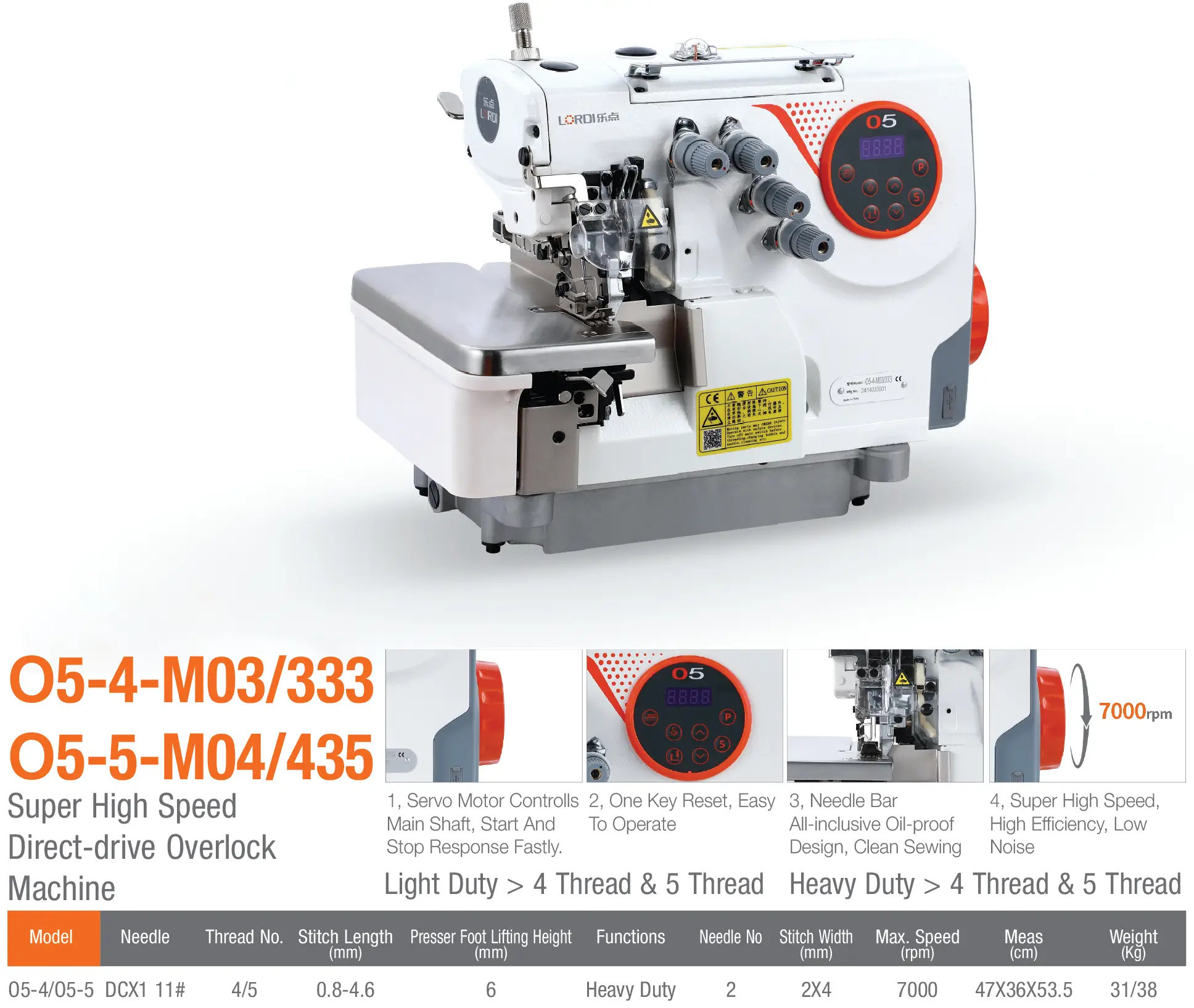

This premium industrial overlock sewing machine features an advanced direct-drive servo motor system that controls the main shaft directly, ensuring lightning-fast start and stop responses. Engineered for high-volume production, it achieves blazing speeds of up to 7000 rpm while maintaining low noise levels. The machine incorporates an innovative all-inclusive oil-proof needle bar design to guarantee clean, stain-free sewing. With its easy-to-use control interface featuring a one-key reset, it smoothly handles everything from light materials to heavy-duty applications across 4-thread and 5-thread requirements.
Technical Specifications
| Specification Parameter | Details |
| Model | O5-4 / O5-5 |
| Needle | DCX1 11# |
| Thread No. | 4 / 5 |
| Stitch Length | 0.8 - 4.6 mm |
| Presser Foot Lifting Height | 6 mm |
| Functions / Material Suitability | Heavy Duty (Also supports Light Duty) |
| Needle No | 2 |
| Stitch Width | 2 x 4 mm |
| Max. Speed | 7000 rpm |
| Measurement (Meas) | 47 x 36 x 53.5 cm |
| Weight | 31 / 38 Kg |
Key Features
Servo Motor Control: Controls the main shaft directly, allowing for a fast and highly responsive start and stop.
One Key Reset: Features an intuitive operation screen with a one-key reset function that is very easy to operate.
Oil-proof Needle Bar: All-inclusive oil-proof design prevents fabric staining and ensures perfectly clean sewing.
Super High Speed: Operates at a powerful 7000 rpm for ultimate production efficiency with minimal noise.
