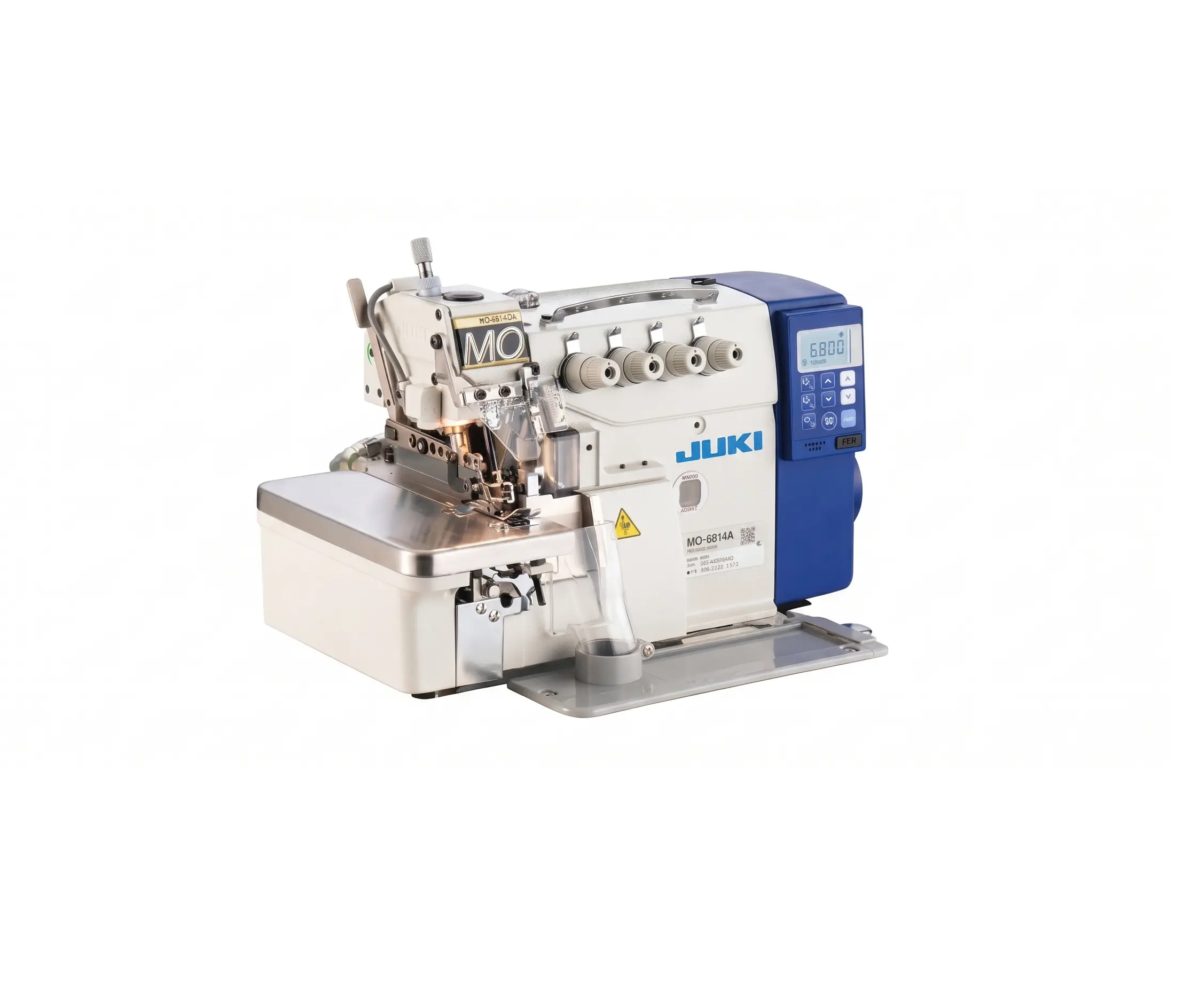

MO-6814DA Direct-drive overlock sewing machine
Detailed Description
The Juki MO-6814DA series sets the standard for high-speed overlocking and safety stitching in the textile and garment manufacturing industry. Equipped with an advanced direct-drive servomotor built directly into the machine head, it significantly reduces noise and vibration while maximizing energy savings and providing superior needle penetration.
Its sophisticated lubrication mechanism prevents oil leakage, ensuring the fabric remains clean and stain-free throughout the production process. Designed to handle various fabric weights from light to heavy, it delivers smooth feeding, consistent stitch quality, and high productivity. With its optimized thread path and easy-to-use dial adjustments, the MO-6814DA is the ideal choice for industrial factories that require both speed and precision.

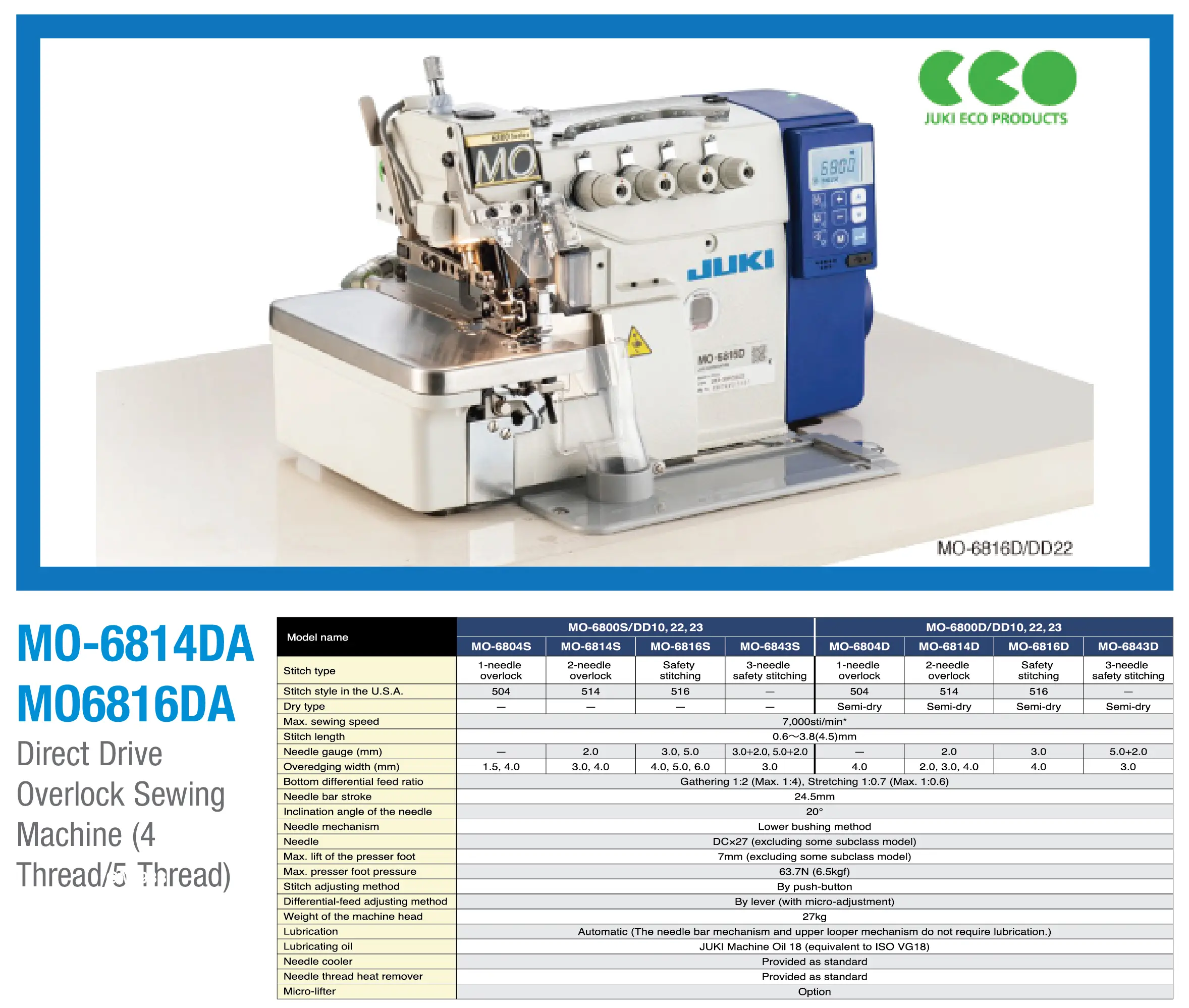

Technical Specifications
| Feature | Description / Value |
| Model | MO-6814DA-BE6-40H |
| Application | Light to medium-heavy fabrics |
| Number of Needles | 2 |
| Number of Threads | 4 |
| Max. Sewing Speed | 7,000 sti/min |
| Stitch Length | 0.8 ~ 4 mm |
| Needle Gauge | 2.0 mm |
| Overedging Width | 4.0 mm |
| Differential Feed Ratio | Gathering 1:2, Stretching 1:0.7 |
| Lubrication | Automatic / Semi-dry |
| Weight of Machine Head | 28 kg |
Key Features
Direct-Drive Motor System: An integrated servomotor eliminates belt noise and vibration while significantly reducing electricity consumption and improving responsiveness.
High-Speed Performance: Operates at up to 7,000 stitches per minute to maximize production line efficiency without sacrificing seam strength.
Versatile Stitching: Highly suited for varied applications, including seaming and overedging on knitwear, activewear, fleece, and woven fabrics.
Advanced Lubrication Mechanism: Features an improved oil distribution system that prevents oil from leaking into the sewing area, keeping garments protected from stains.
Easy Adjustments: Convenient external dials and push-buttons allow for quick alterations to the stitch length and differential feed ratio.
Durable and Ergonomic: Built with robust components for long-term usage, with low vibration to reduce operator fatigue over extended shifts.
