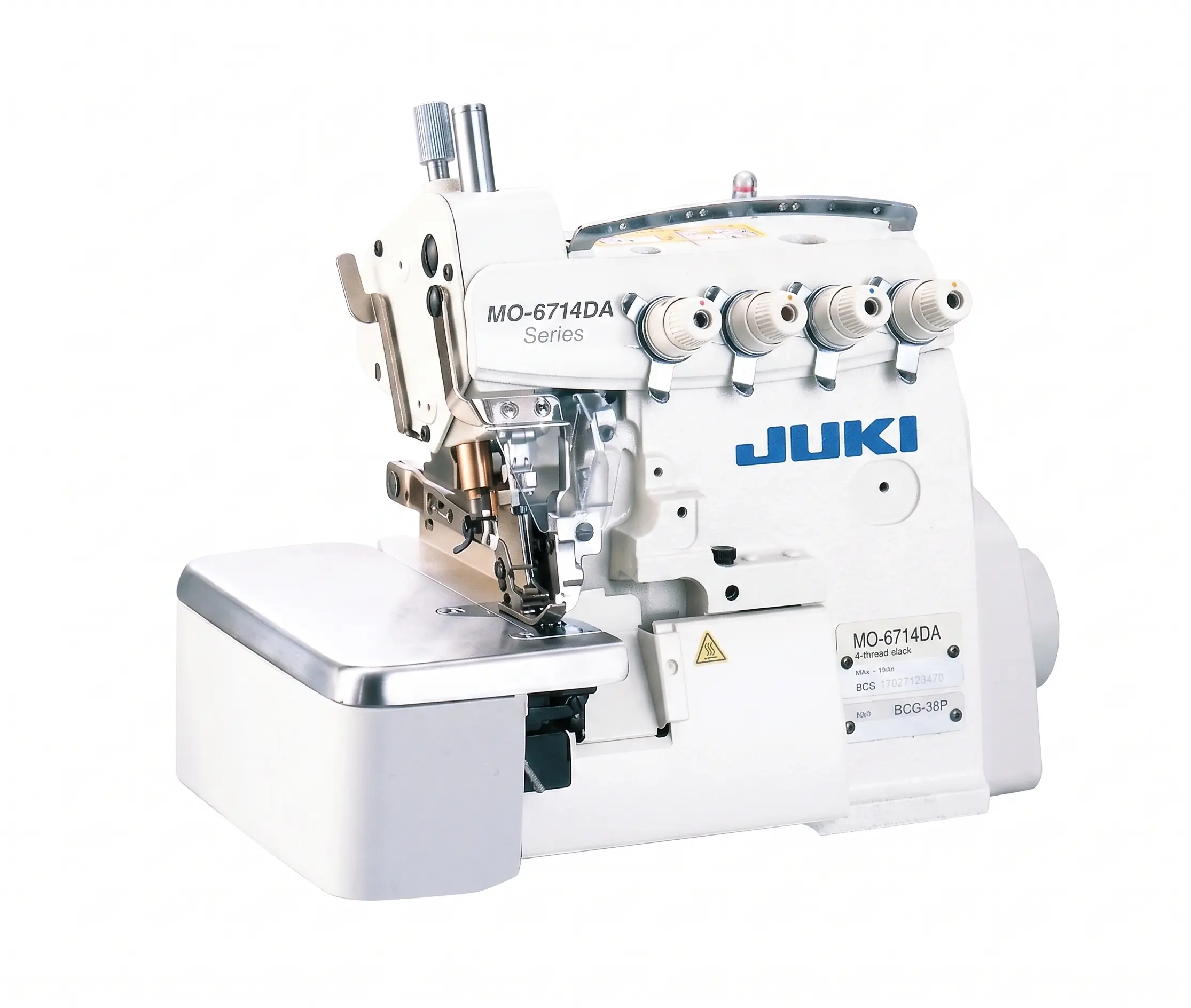

MO-6714DA Direct-drive overlock sewing machine
Detailed Description
The Juki MO-6714DA series sets the standard for high-speed overlocking and safety stitching. Equipped with an advanced direct-drive servomotor built into the machine head, it significantly reduces noise and vibration while maximizing energy savings.
The machine's sophisticated lubrication mechanism is fully enclosed to prevent oil leakage, ensuring the material remains clean and stain-free. Designed to handle various fabric weights from light to heavy, it delivers smooth feeding, consistent stitch quality, and high productivity. With its optimized thread path and easy-to-use dial adjustments, the MO-6714DA is the ideal choice for industrial apparel manufacturing.

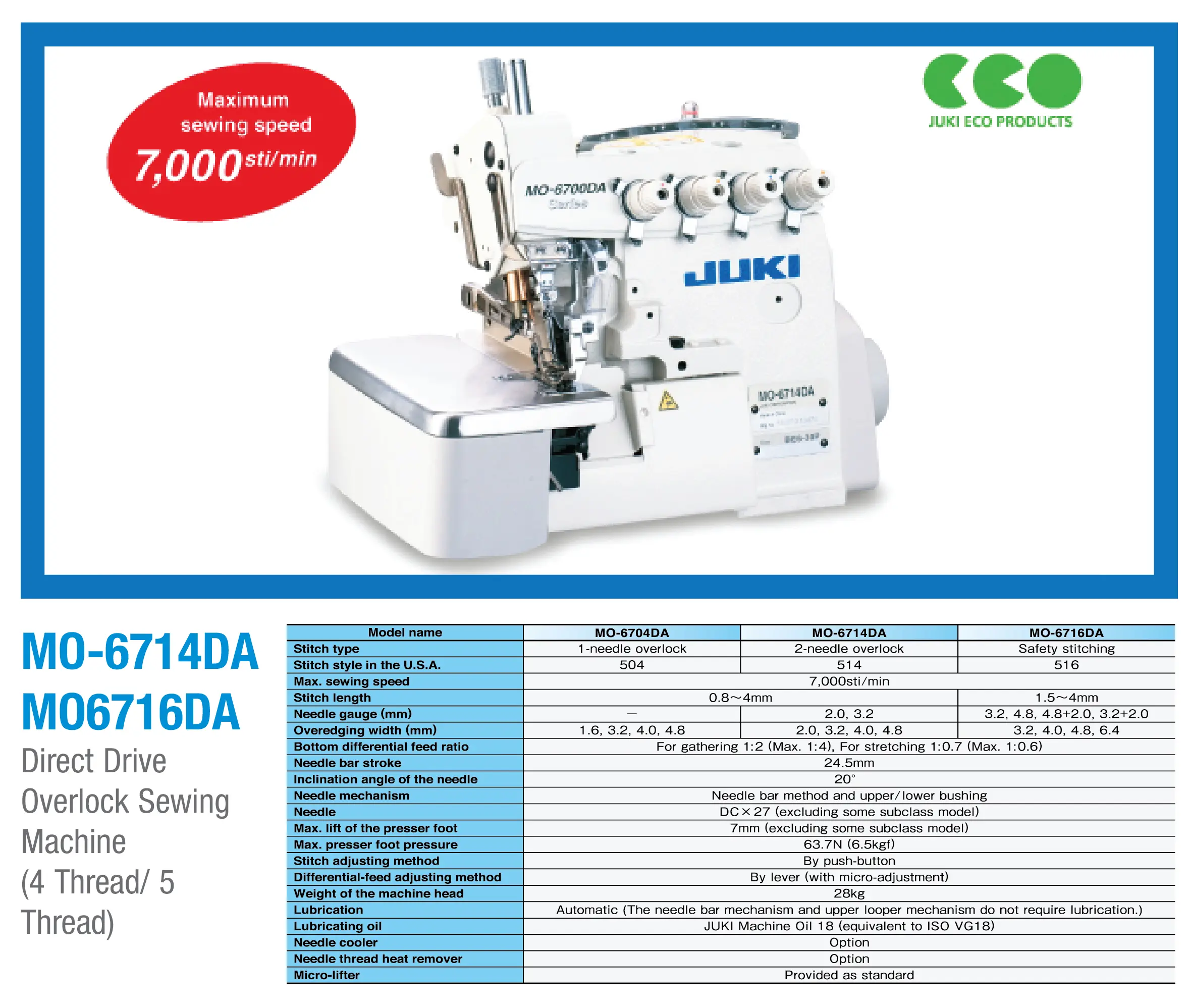

Technical Specifications
| Feature | Description / Value |
| Model | MO-6714DA-BE6-40H |
| Application | Light to medium-heavy fabrics |
| Number of Needles | 2 |
| Number of Threads | 4 |
| Max. Sewing Speed | 7,000 sti/min |
| Stitch Length | 0.8 ~ 4 mm |
| Needle Gauge | 2.0 mm |
| Overedging Width | 4.0 mm |
| Differential Feed Ratio | Gathering 1:2, Stretching 1:0.7 |
| Lubrication | Automatic |
| Weight of Machine Head | 28 kg |
Key Features
Direct-Drive System: An integrated servomotor eliminates belt noise and vibration while significantly reducing electricity consumption.
High-Speed Performance: Operates at up to 7,000 stitches per minute to maximize production line efficiency.
Versatile Stitching: Can be used for various applications, including seaming and overedging on knitwear, activewear, and woven fabrics.
Advanced Lubrication Mechanism: Features an improved oil distribution system that prevents oil from leaking into the sewing area, protecting garments from stains.
Easy Adjustments: Convenient external dials allow for quick alterations to the stitch length and differential feed ratio.
Ergonomic Design: Includes built-in LED lighting options and simplified controls to reduce operator fatigue.
