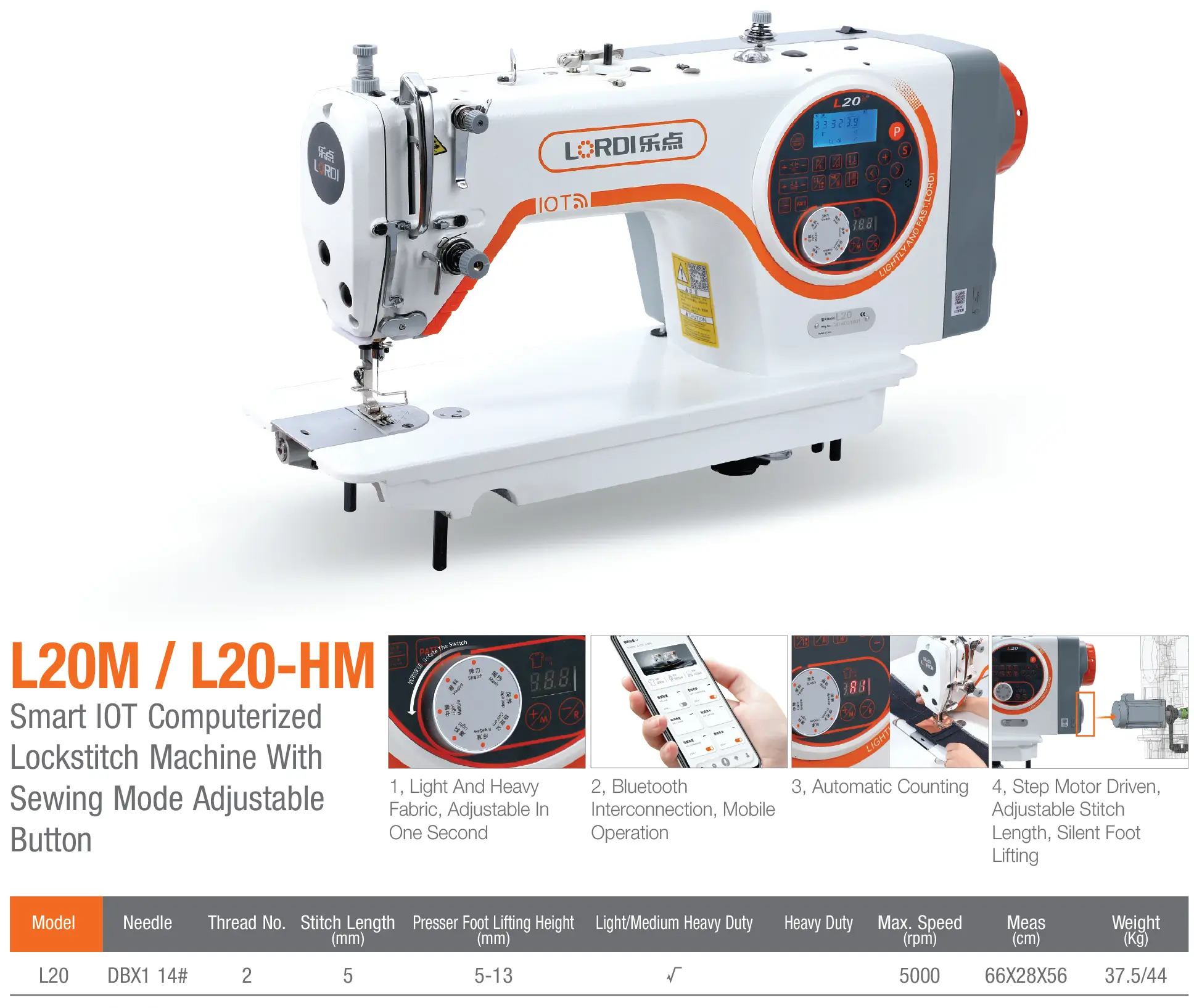

L20M / L20-HM Smart IOT Computerized Lockstitch Machine
Detailed Description
The LORDI L20M / L20-HM series represents the pinnacle of modern, connected apparel manufacturing. Integrated with cutting-edge Smart IOT capabilities, this machine allows factory managers and operators to handle adjustments and monitor data via Bluetooth interconnection on mobile devices. Mechanically, it replaces traditional configurations with an advanced step motor driver, ensuring precise stitch lengths and silent presser foot lifting. Designed for light to medium-heavy duty applications, its standout physical dial interface allows users to seamlessly adapt the machine's feeding tension from sheer mesh to heavy multi-layered fabrics in just one second, radically enhancing factory floor versatility and throughput.
Technical Specifications
| Parameter | Specification Details |
| Model | L20 (L20M / L20-HM) |
| Needle Type | DBX1 14# |
| Thread No. | 2 |
| Stitch Length (mm) | 5 mm |
| Presser Foot Lifting Height (mm) | 5-13 mm |
| Material Suitability | Light / Medium Heavy Duty ($\surd$) |
| Max. Speed (rpm) | 5000 rpm |
| Measurements (cm) | 66 X 28 X 56 cm |
| Weight (Kg) | 37.5 / 44 Kg |
| Connectivity | Bluetooth / Smart IOT |
Key Features
Instant Fabric Adjustment (Light & Heavy): Equipped with an innovative physical selection dial that allows operators to re-optimize settings for different fabric thicknesses (such as Light, Middle, Heavy, Stretch, or Mesh) in just one second.
Smart IOT & Bluetooth Interconnection: Enables smart mobile operation, letting users configure parameters, monitor diagnostics, and manage operations remotely via a smartphone app.
Automatic Piece Counting: Features an intelligent digital production counter built directly into the control console to track manufacturing progress in real-time.
Step Motor Driven Technology: Utilizing a dedicated stepping motor, the machine provides highly accurate, programmable stitch lengths alongside a completely silent automatic presser foot lifting mechanism.
