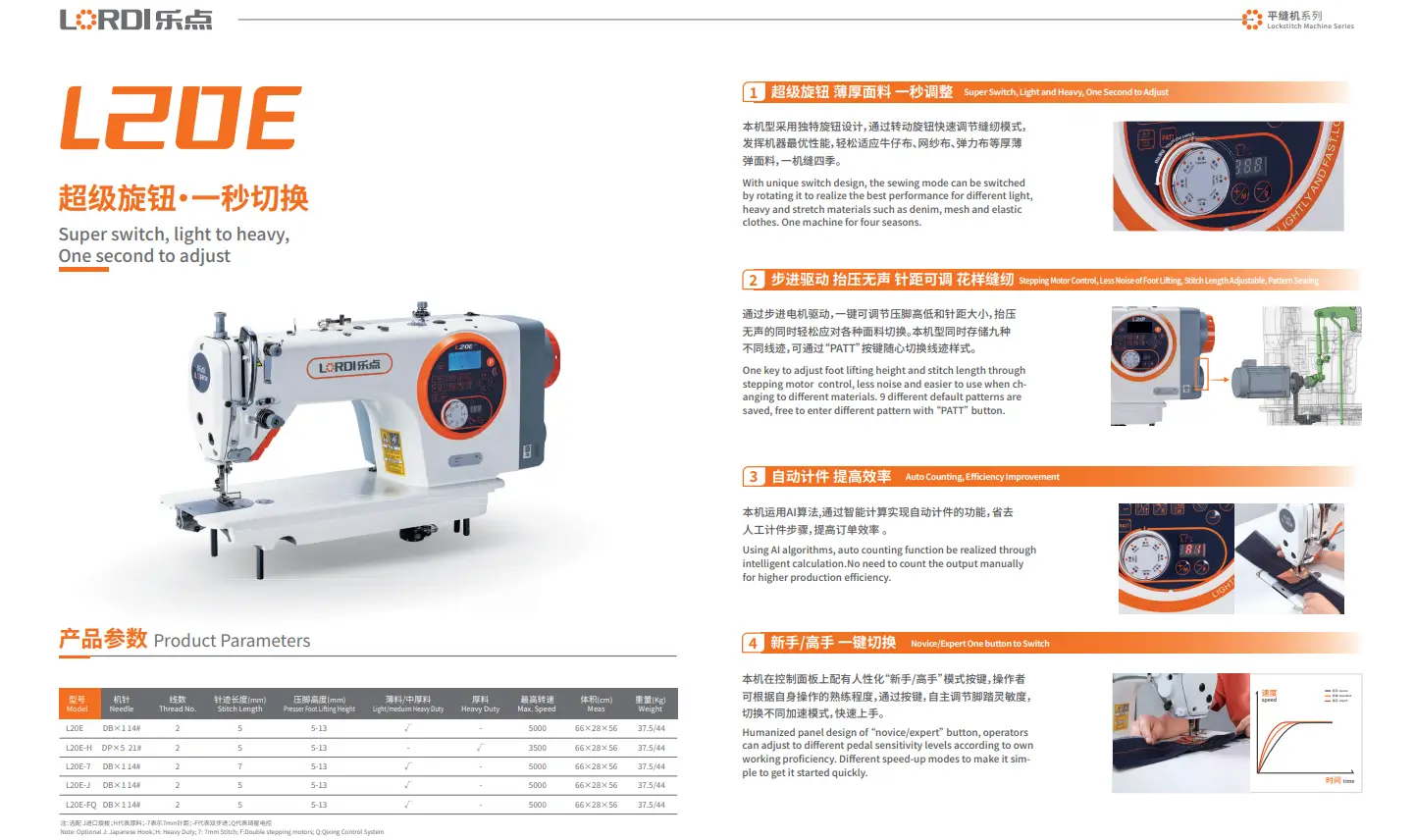

L20E Sewing Machine
Detailed Description
The LORDI L20E Lockstitch Machine Series is engineered for modern garment production lines requiring flexibility and high efficiency. By integrating smart stepping motors, the machine minimizes noise during foot lifting and allows electronic adjustment of stitch length and foot height. The standout feature is its mechanical "Super Switch" rotary dial, enabling operators to switch sewing profiles for thin or thick garments in just one second. Additionally, with an AI-powered auto-counting function and selectable user proficiency modes (Novice vs. Expert), it ensures maximized output and a short learning curve for workers of all skill levels.
Technical Specifications
| Model | Needle | Thread No. | Stitch Length (mm) | Presser Foot Lifting Height (mm) | Light/Medium Heavy Duty | Heavy Duty | Max. Speed (rpm) | Meas (cm) | Weight (Kg) Net/Gross |
| L20E | DB×1 14# | 2 | 5 | 5-13 | √ | - | 5000 | 66×28×56 | 37.5 / 44 |
Key Features
1. Super Switch (Light and Heavy, One Second to Adjust)
Features a unique dial switch design to rapidly change sewing modes.
Optimizes performance instantly for different light, heavy, and stretch materials like denim, mesh, and elastic fabrics.
2. Stepping Motor Control
Less Noise of Foot Lifting: Provides quiet and smooth presser foot lifting.
Stitch Length Adjustable: Allows quick adjustment of foot lifting height and stitch length via one key when switching materials.
Pattern Sewing: Stores 9 different default patterns; users can switch between patterns freely using the "PATT" button.
3. Auto Counting (Efficiency Improvement)
Uses intelligent AI algorithms to automatically count pieces.
Eliminates manual tracking, reducing labor steps and improving overall production efficiency.
4. Novice/Expert One Button to Switch
Humanized panel design allows operators to choose between novice and expert modes.
Adjusts pedal sensitivity and speed-up acceleration models based on the operator's proficiency level for a faster, easier start.
