GM-2-2 (Button Tension Tester / Button Pull Tester)

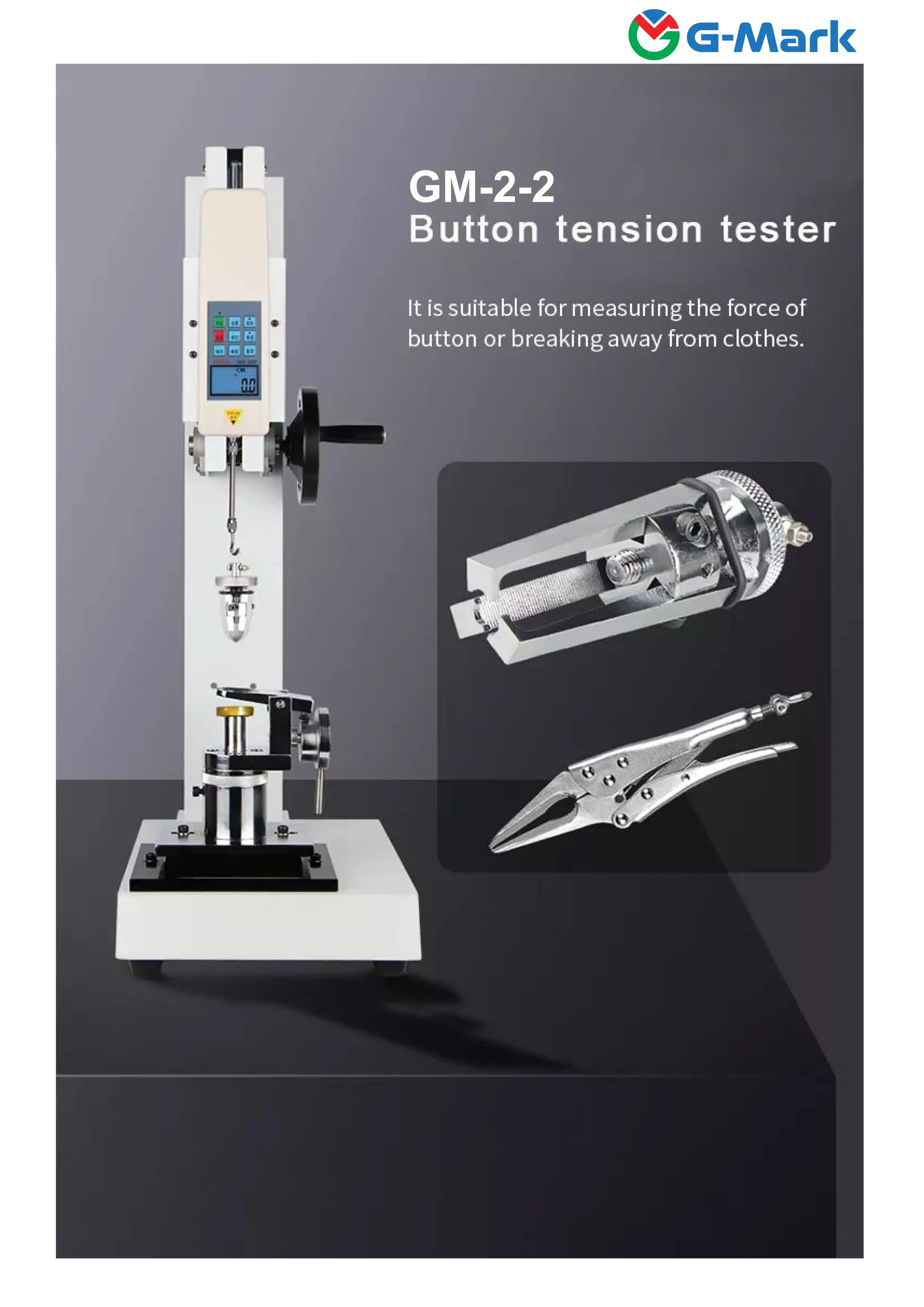

The GM-2-2 Button Tension Tester is a dedicated instrument suitable for measuring the snap or pull-off force of buttons and similar fasteners breaking away from clothing. It features a robust design that supports various optional force gauges to ensure quality and compliance in textile manufacturing.

Enquire for Price Brochure (PDF)

Need more information?

Our technical team is ready to help you choose the right machinery for your production needs.

Detailed Description

This button pull tester is an essential quality control tool designed specifically for the garment and textile industry. It serves to measure the exact force required to pull a button or fastener off a piece of clothing, helping manufacturers comply with safety standards. The setup consists of a stable mechanical test stand integrated with a smooth metal base, a gear and rack transmission system for height adjustment via a table handle, and a specialized mounting panel that can accommodate different types of force gauges. Users can flexibly configure the system by selecting from digital, pointer, or economical push-pull meters based on their testing requirements.

Technical Specifications

Rated Load / Upper Limit Load: 500N

Upper Limit Travel: 180mm

Dimensions: 260 × 360 × 700 mm

Net Weight: Approx. 20kg

Fixture Specifications:

Pointed Three-Jaw Fixture: For semicircular buttons (Opening size: 20mm)
Flat Head Three-Jaw Fixture: For flat buttons (Opening size: 6–35mm)
Vise Clamp: For cylindrical buttons (Opening size: 37mm)

Key Features

Versatile Force Gauge Compatibility: Offers a variety of push-pull meters, allowing users to select an optional digital display, a pointer display, or an economical force gauge.

Three Specialized Fixtures Included: Comes equipped with three distinct clamp types (pointed three-jaw, flat head three-jaw, and vise clamp) to securely hold semicircular, flat, or cylindrical buttons.

Smooth Rack & Pinion Transmission: The table handle operates a screw gear and rack system to adjust the test height smoothly and seamlessly.

Stable Metal Base: Features a smooth, flat metal base designed to optimize fixture positioning and stabilize the fabric sample during testing.

Bearing Pedestal Maintenance: Includes a dedicated bearing pedestal for convenient handle rotation, along with designated oil-filling holes for easy maintenance to ensure long-term, fluid operation.
