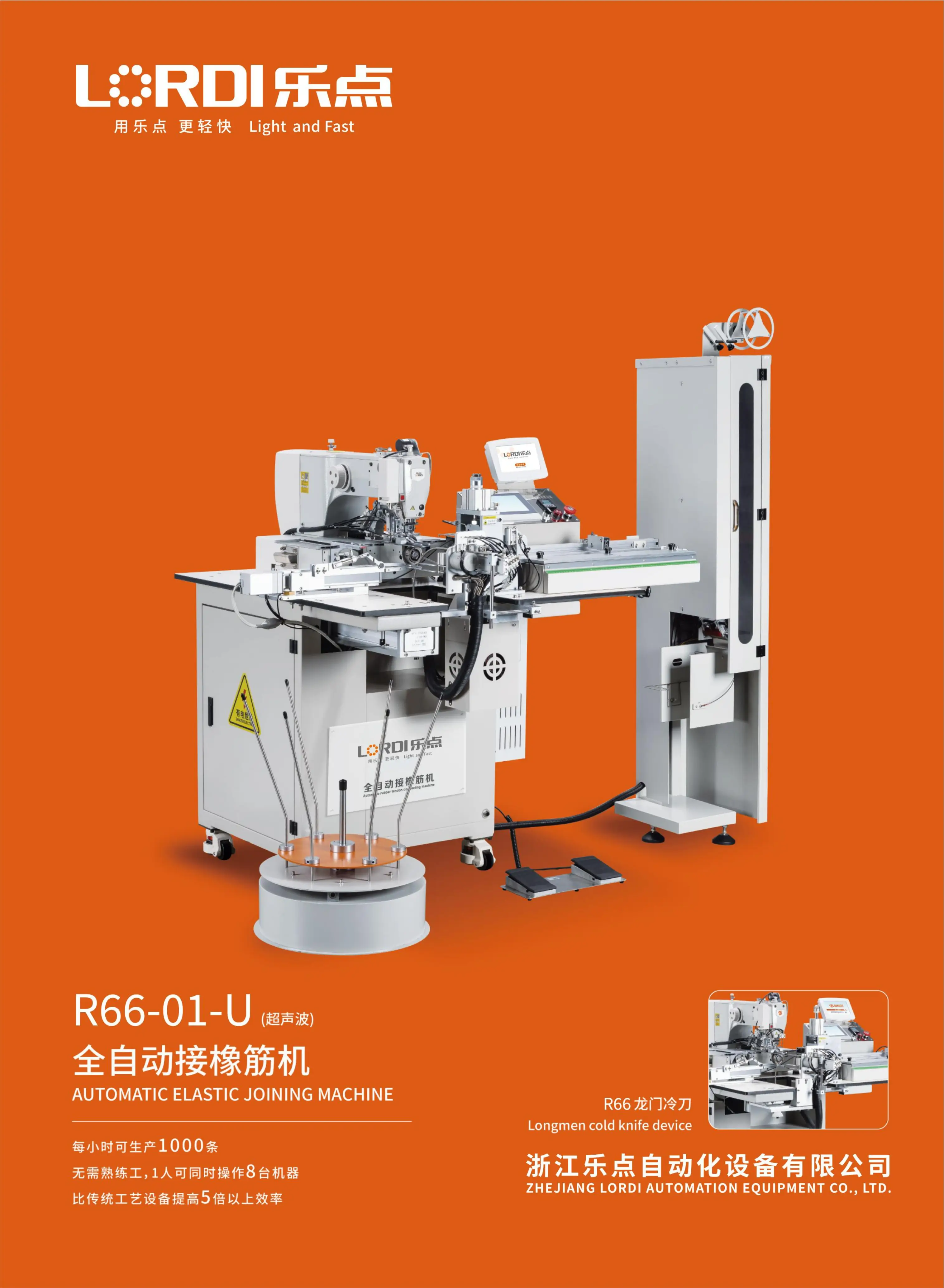

R66 AUTOMATIC ELASTIC JOINING MACHINE
Detailed Description
Manufactured by Zhejiang Lordi Automation Equipment Co., Ltd., the R66 series is a game-changer for automated elastic band assembly. It can reach an impressive output of up to 1000 pieces per hour, achieving over 5 times the efficiency of traditional processes. It requires zero skilled labor prior setup—allowing a single worker to operate up to 8 machines simultaneously. Featuring the first rotary shuttle automatic oil injection device, it keeps maintenance intervals incredibly low while delivering perfect herringbone seams on heavy-duty waistbands and undergarments.

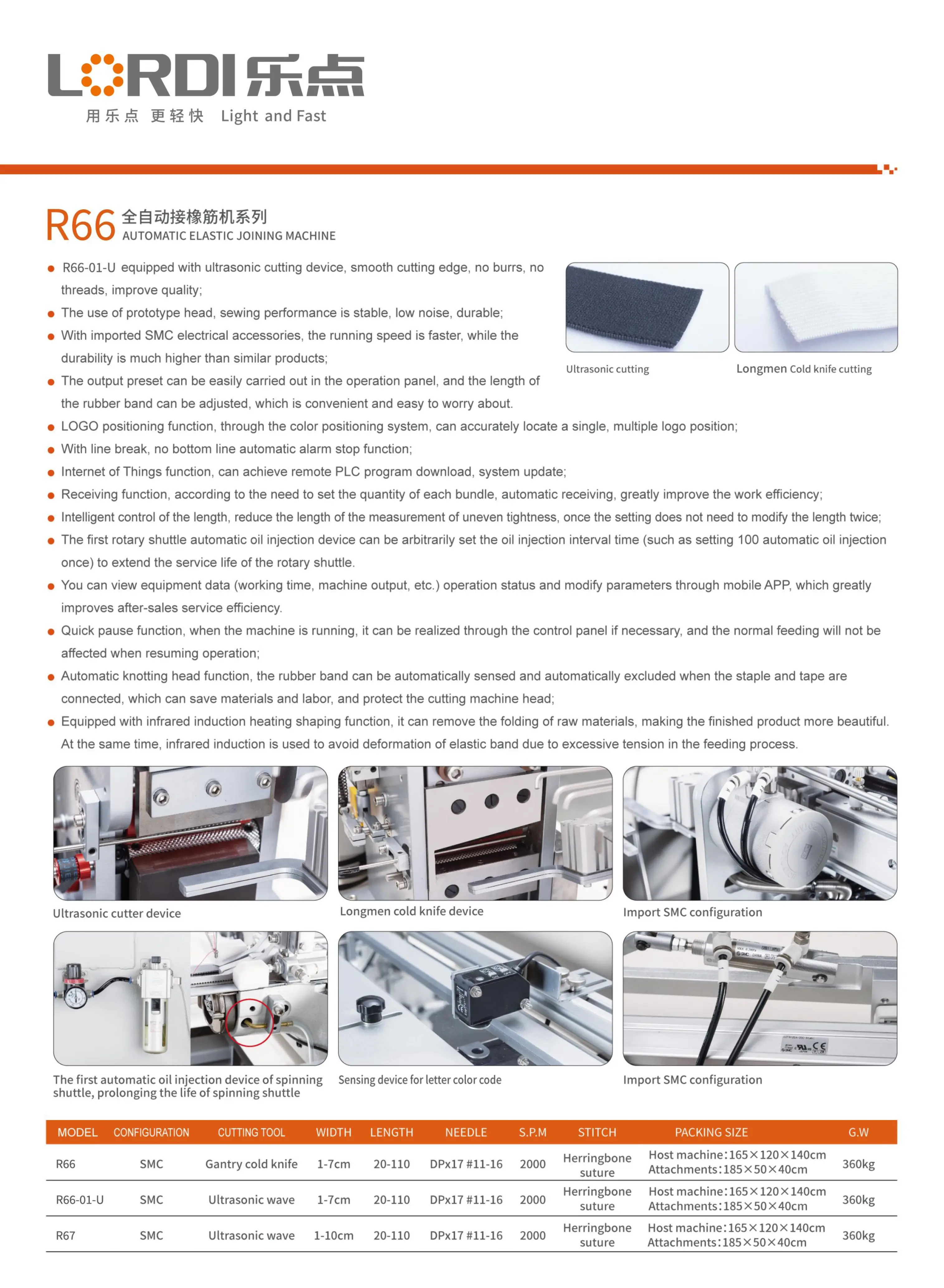

Technical Specifications
| Model | Configuration | Cutting Tool | Width | Length | Needle Type | S.P.M | Stitch Type | Packing Size | G.W (Weight) |
| R66 | SMC | Gantry cold knife | 1–7cm | 20–110 | DPx17 #11–16 | 2000 | Herringbone suture | Host machine: $165 \times 120 \times 140\text{ cm}$ Attachments: $185 \times 50 \times 40\text{ cm}$ | 360kg |
| R66-01-U | SMC | Ultrasonic wave | 1–7cm | 20–110 | DPx17 #11–16 | 2000 | Herringbone suture | Host machine: $165 \times 120 \times 140\text{ cm}$ Attachments: $185 \times 50 \times 40\text{ cm}$ | 360kg |
| R67 | SMC | Ultrasonic wave | 1–10cm | 20–110 | DPx17 #11–16 | 2000 | Herringbone suture | Host machine: $165 \times 120 \times 140\text{ cm}$ Attachments: $185 \times 50 \times 40\text{ cm}$ | 360kg |
Key Features
Advanced Cutting System: R66-01-U is equipped with an ultrasonic cutting device providing a smooth cutting edge with no burrs and no loose threads to improve garment quality. Alternatively, a Gantry Cold Knife system is available.
Stable Prototype Head: Low noise, low vibration, and highly durable sewing performance.
Premium Electrical Components: Integrated with imported SMC electrical accessories, ensuring a faster running speed and superior machine life.
Intuitive Operation Panel: Allows the user to easily set output presets and seamlessly adjust the length of the rubber elastic band.
Color Code Positioning: Features a LOGO positioning function through an intelligent color positioning system to accurately locate single or multiple logo positions.
Smart Sensors & Alarms: Outfitted with an automatic stop alarm for line breaks or if there is no bottom line thread.
IoT & Remote Updates: Internet of Things function enables remote PLC program downloads and system updates.
Receiving Function: Automatically sets bundle quantities and manages collection to greatly improve work efficiency.
Automated Tension & Knotting: Intelligent length control reduces errors from uneven tightness. Includes an automatic knotting function that automatically senses, connection-staples, and excludes waste tape.
Infrared Induction Shaping: Equipped with an infrared induction heating and shaping function to remove material folds, avoiding elastic band deformation caused by excessive tension.
