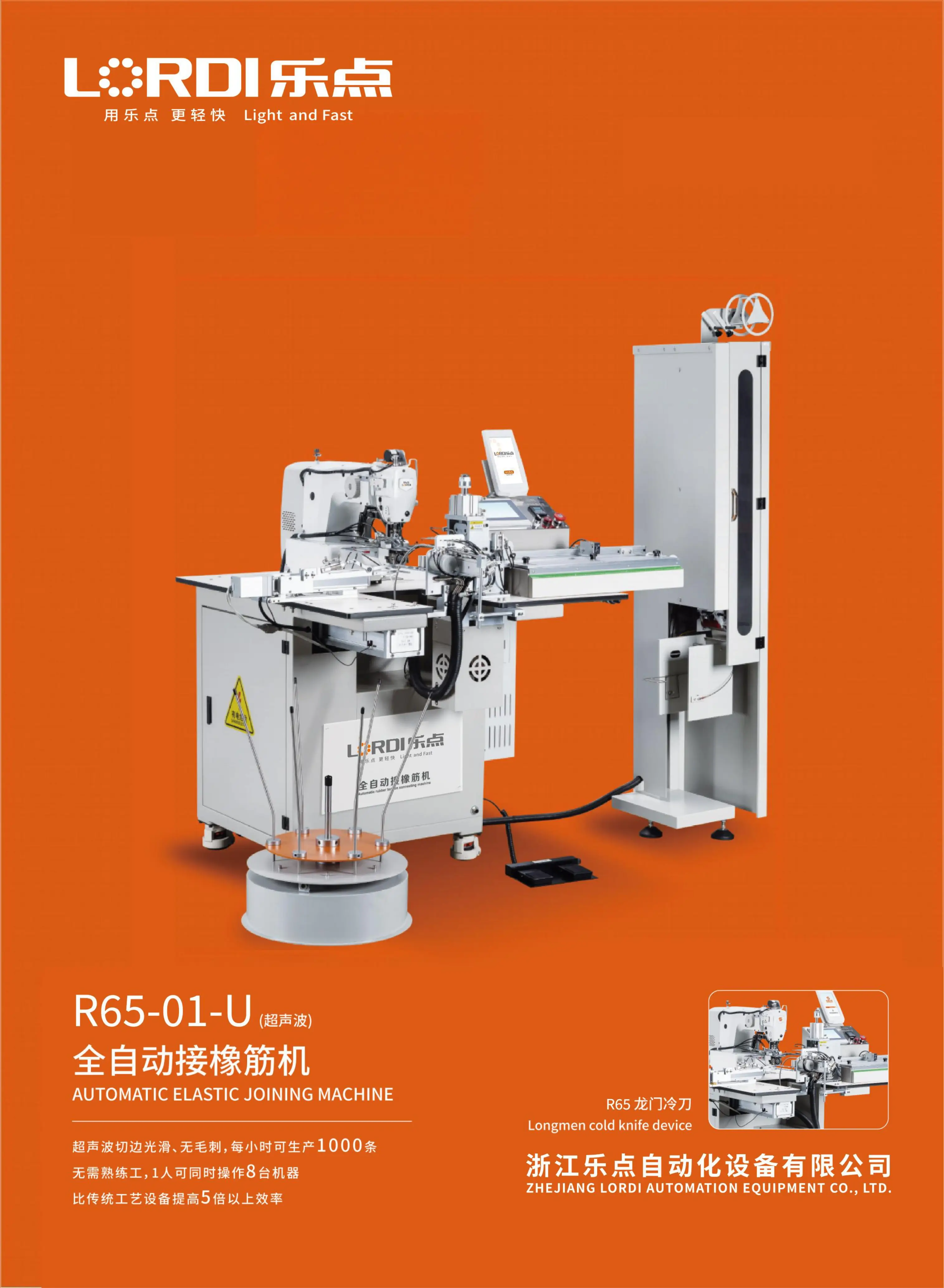

R65 AUTOMATIC ELASTIC JOINING MACHINE
Detailed Description
The R65 series by Zhejiang Lordi Automation Equipment Co., Ltd. is designed to revolutionize large-scale elastic band joining in modern garment factories. Capable of producing up to 1000 pieces per hour, this machine enhances traditional process efficiency by more than 5 times. It eliminates the need for highly skilled operators, allowing one worker to manage up to 8 machines concurrently. With premium herringbone stitching and smart remote management, it stands out as a highly reliable solution for undergarment and sportswear production lines.

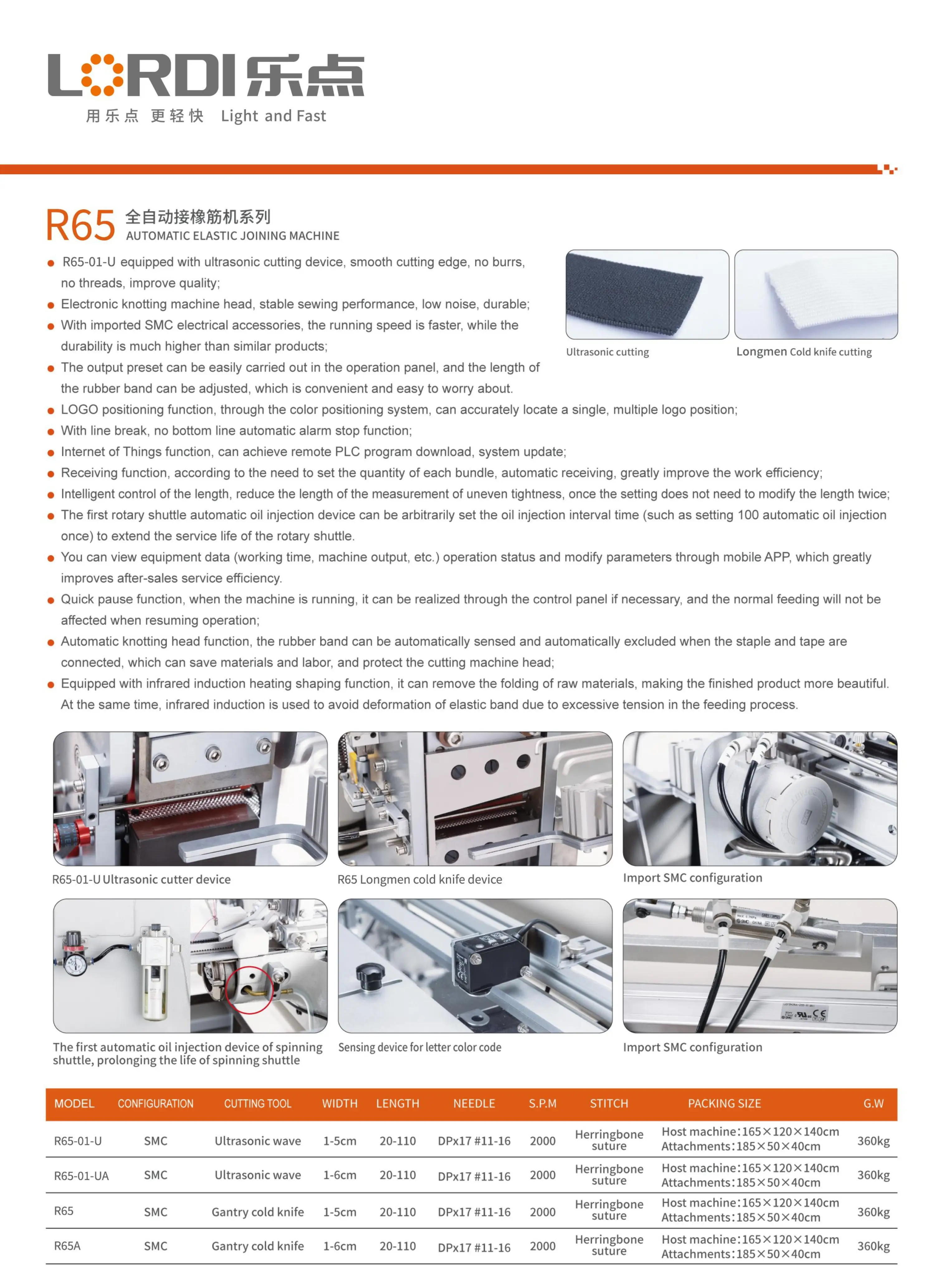

Technical Specifications
| Model | Configuration | Cutting Tool | Width | Length | Needle | S.P.M | Stitch | Packing Size | G.W |
| R65-01-U | SMC | Ultrasonic wave | 1–5cm | 20–110 | DPx17 #11–16 | 2000 | Herringbone suture | Host machine: $165 \times 120 \times 140\text{ cm}$ Attachments: $185 \times 50 \times 40\text{ cm}$ | 360kg |
| R65-01-UA | SMC | Ultrasonic wave | 1–6cm | 20–110 | DPx17 #11–16 | 2000 | Herringbone suture | Host machine: $165 \times 120 \times 140\text{ cm}$ Attachments: $185 \times 50 \times 40\text{ cm}$ | 360kg |
| R65 | SMC | Gantry cold knife | 1–5cm | 20–110 | DPx17 #11–16 | 2000 | Herringbone suture | Host machine: $165 \times 120 \times 140\text{ cm}$ Attachments: $185 \times 50 \times 40\text{ cm}$ | 360kg |
| R65A | SMC | Gantry cold knife | 1–6cm | 20–110 | DPx17 #11–16 | 2000 | Herringbone suture | Host machine: $165 \times 120 \times 140\text{ cm}$ Attachments: $185 \times 50 \times 40\text{ cm}$ | 360kg |
Key Features
High-Quality Cutting Performance: R65-01-U is equipped with an ultrasonic cutting device that provides a smooth cutting edge with no burrs and no loose threads to significantly improve overall garment quality.
Electronic Knotting Head: Employs an electronic knotting machine head that ensures stable sewing performance, low noise, and excellent durability.
Premium SMC Configuration: Integrated with imported SMC electrical accessories to achieve faster running speeds and durability far exceeding similar products.
Smart Operation Panel: The output preset can be easily entered into the operation panel, allowing convenient, stress-free adjustment of the rubber elastic band length.
LOGO Positioning System: Features a color positioning system that accurately locates a single or multiple logo positions on the band.
Line Break Protection: Built-in automatic alarm stop function triggers instantly when a line break occurs or if there is no bottom line thread remaining.
IoT Program Management: Internet of Things function enables remote PLC program downloads and smooth system updates.
Efficient Receiving System: Automatically sets bundle quantities according to production needs, optimizing work efficiency.
Intelligent Tension Control: Automatically regulates length measurements to reduce uneven tightness, eliminating the need to adjust the length twice once set.
Automatic Lubrication Device: Features the first rotary shuttle automatic oil injection device with customizable interval times (e.g., setting 100 automatic injections at once) to extend service life.
Mobile APP Monitoring: Users can view live equipment data (working time, machine output, etc.) and modify operational parameters directly through a mobile APP.
Quick Pause Function: Allows for an instant pause via the control panel while running without affecting normal material feeding when operation resumes.
Auto-Knotting & Exclusion: Automatically senses and excludes the rubber band when the staple and tape are connected, saving raw materials and protecting the cutting head.
Infrared Induction Heating: Equipped with an infrared induction heating and shaping function to remove raw material folds and avoid elastic band deformation caused by excessive tension during feeding.
