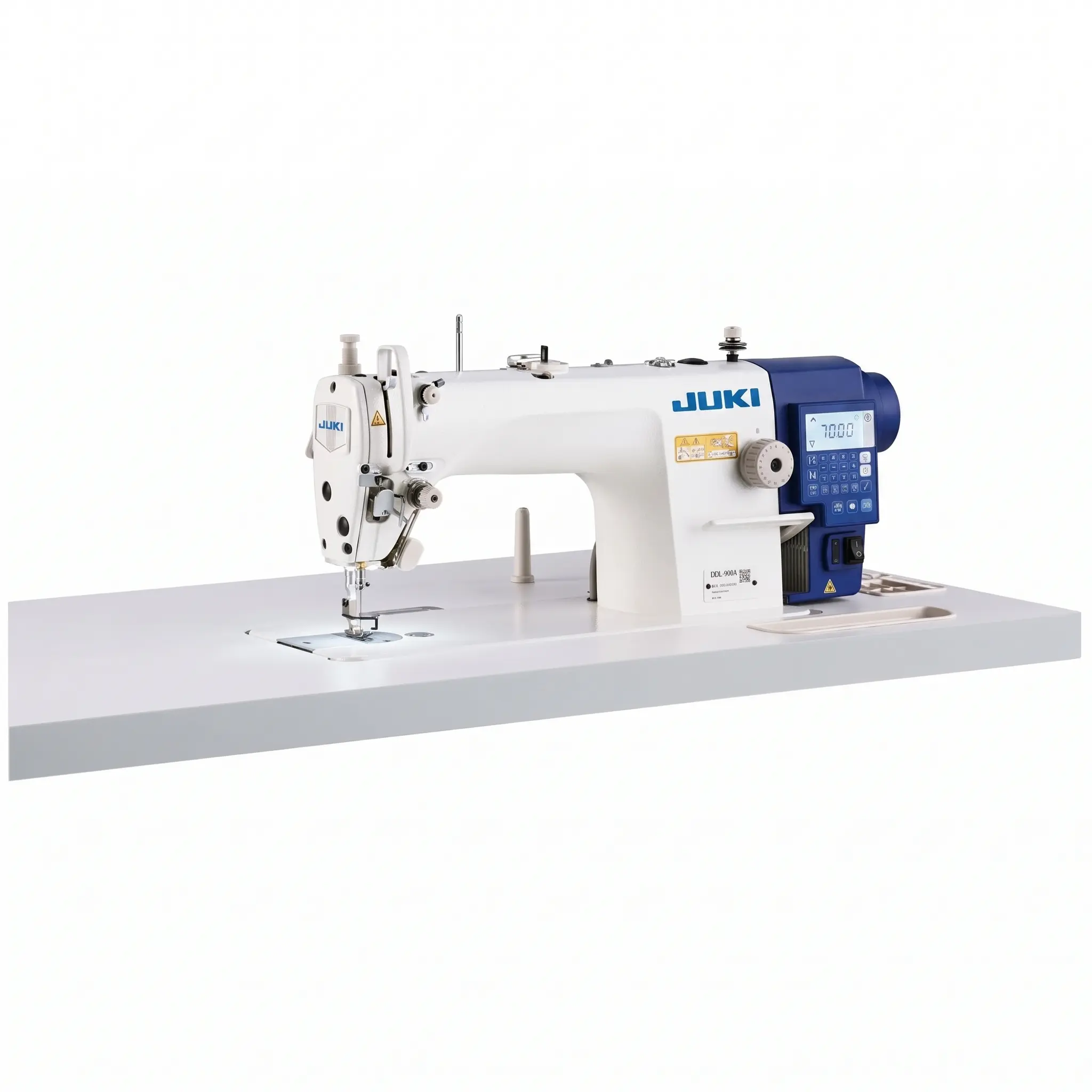

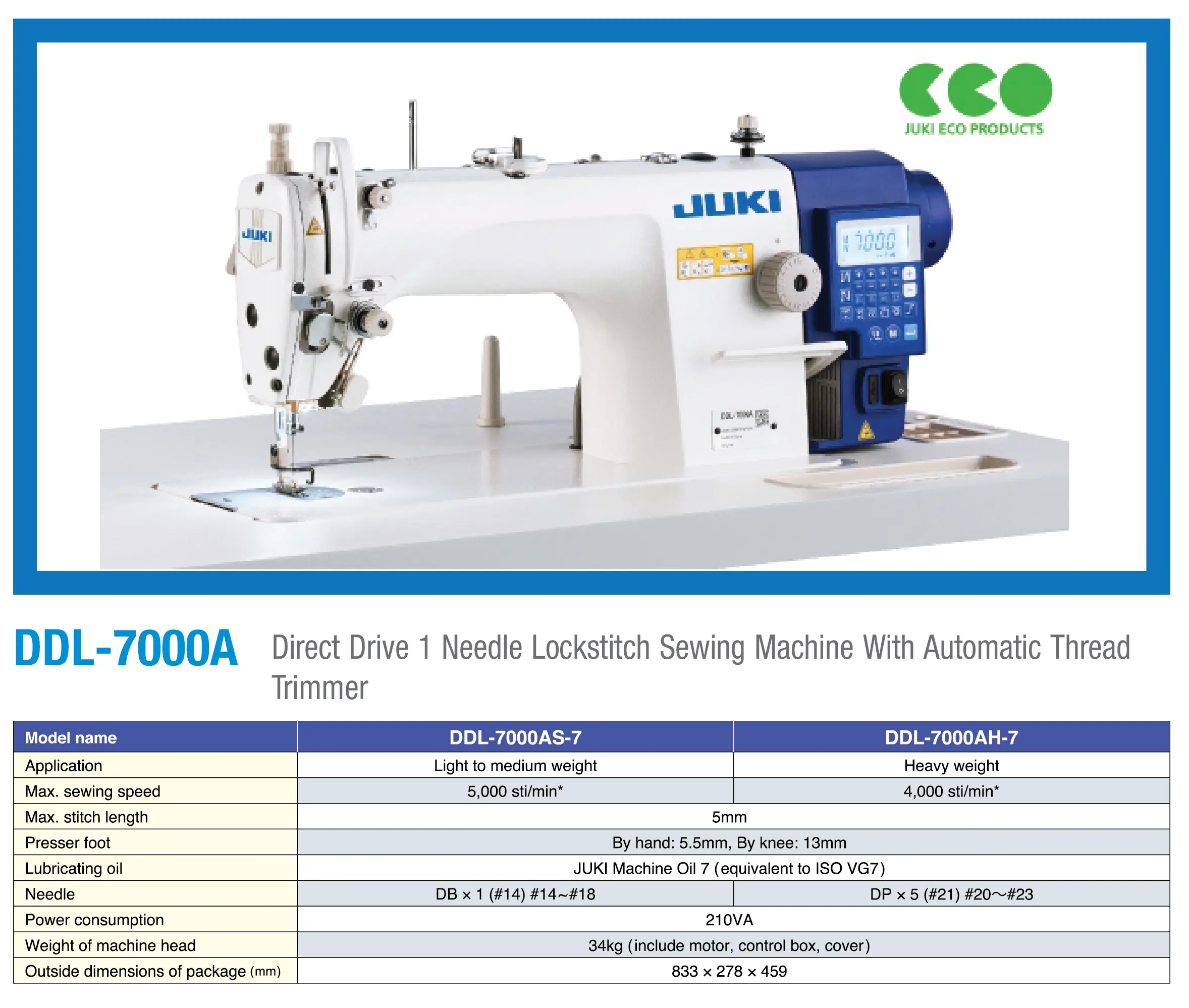

DDL-7000A Lockstitch Machine

An energy-saving servomotor is installed in the direct-drive style.
The direct drive system has been adopted. The energy-saving, highly efficient servomotor is installed in a direct-drive configuration to transmit power to the DDL-7000A sewing machine without loss, thereby providing improved responsiveness, quicker start-up, and increased needle penetration force.

The compact-sized control box and operation panel.
Both the compact-sized control box and the operation panel are integrated with the machine head. The DDL-7000A Series is provided as standard with the operation panel.

Provided as standard with LED lighting.
Since the LED lights cast light directly downward, illuminating the needle entry area from the right and left sides of the needle bar, sewing work can be carried out more easily than with light from a single direction. In addition, the illuminance of the LED lights can be adjusted in five steps and can be used as an auxiliary light for work.

Highly-functional touch-back switch.
JUKI's sDDL-7000A Series, which is provided with a thread trimmer, is also provided as standard with the renowned needle breakage preventing function. The main shaft angle control works to prevent needle breakage even when the touch-back switch is used to perform reverse feed stitching. The height of the touch-back switch is adjustable according to the items to be sewn.
