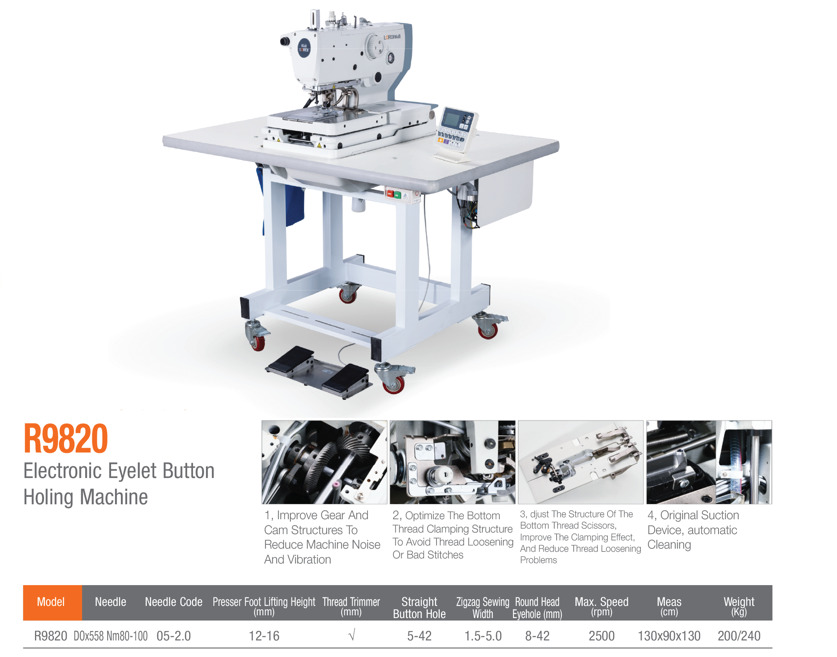

R9820 Electronic Eyelet Button Holing Machine
Detailed Description
The LORDI R9820 offers an advanced mechanical and electronic layout tailored for heavy-duty garment production. By upgrading internal cam and gear structures, the machine minimizes vibration and mechanical noise, creating a much smoother working environment.
This model introduces an innovative bottom thread clamping system coupled with an adjustable bottom thread scissors mechanism. Together, they enhance the overall thread clamping effect, vastly reducing common issues like thread loosening or bad stitches. Additionally, a built-in original suction device provides automatic cleaning during operation, removing lint and waste materials instantly to ensure continuous, maintenance-free production.
Technical Specifications
| Specification Parameter | Details |
| Model | R9820 |
| Needle Type | DOx558 Nm80-100 |
| Needle Code | 05-2.0 |
| Presser Foot Lifting Height | 12 - 16 mm |
| Thread Trimmer | Yes ($\checkmark$) |
| Straight Button Hole | 5 - 42 mm |
| Zigzag Sewing Width | 1.5 - 5.0 mm |
| Round Head Eyehole | 8 - 42 mm |
| Maximum Speed | 2500 rpm |
| Measurements (Meas) | 130 x 90 x 130 cm |
| Weight (Net/Gross) | 200 / 240 Kg |
Key Features
Reduced Noise & Vibration: Upgraded internal gear and cam structures significantly damp operational vibration and mechanical noise.
Optimized Thread Clamping: Features an advanced bottom thread clamping structure designed to prevent thread loosening and eliminate bad stitches.
Adjustable Bottom Scissors: Allows manual adjustment of the bottom thread scissors structure to improve the clamping effect and prevent thread slack.
Original Suction Device: Built-in automatic suction device handles cleaning tasks on the fly, keeping the sewing area free of fabric debris.
