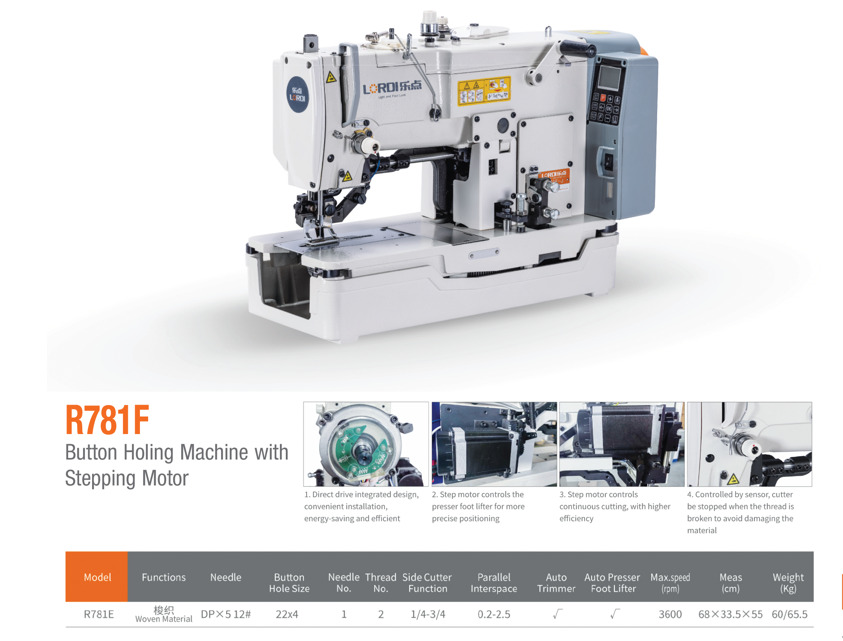

R781F Button Holing Machine with Stepping Motor
Detailed Description
The LORDI R781F introduces highly efficient mechanisms designed to upgrade the workflow of modern apparel manufacturing. Utilizing a direct-drive integrated motor setup, it cuts down power consumption while offering a hassle-free and convenient installation process.
The machine incorporates independent step motors to handle the critical movements of presser foot lifting and cutting. This system delivers incredibly accurate positioning and continuous cutting performance that boosts production speed. Additionally, a highly sensitive integrated sensor monitors the thread line constantly; if a thread break occurs, it immediately halts the cutter mechanism, successfully preventing any accidental or permanent damage to your valuable fabric.
Technical Specifications
| Specification Parameter | Details |
| Model | R781E |
| Functions / Material Compatibility | 梭织 (Woven Material) |
| Needle Type | DP x 5 12# |
| Button Hole Size | 22 * 4 mm |
| Needle Number | 1 |
| Thread Number | 2 |
| Side Cutter Function | 1/4 - 3/4 |
| Parallel Interspace | 0.2 - 2.5 mm |
| Auto Trimmer | Yes ($\checkmark$) |
| Auto Presser Foot Lifter | Yes ($\checkmark$) |
| Maximum Speed | 3600 rpm |
| Measurements (Meas) | 68 x 33.5 x 55 cm |
| Weight (Net/Gross) | 60 / 65.5 Kg |
Key Features
Direct Drive Integrated Design: Features a compact direct-drive motor that offers convenient installation, energy-saving operation, and highly efficient performance.
Step Motor Presser Foot Lifter: The dedicated step motor governs the presser foot lifter, ensuring smoother operation and more precise fabric positioning.
Continuous Cutting Efficiency: Powered by a step motor that controls continuous cutting mechanisms to handle high-volume operations with elevated efficiency.
Sensor-Controlled Safety: Controlled by an intelligent sensor system that stops the cutter instantly when a thread is broken, successfully avoiding any damage to the material.
