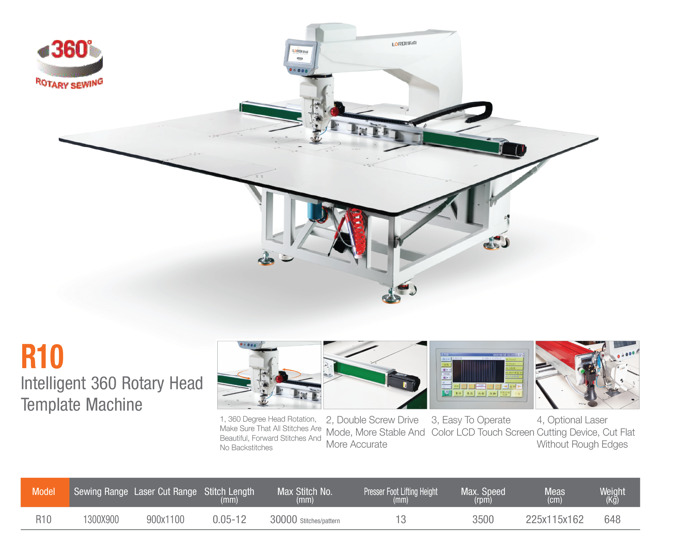

R10 Intelligent 360° Rotary Head Template Machine
Detailed Description
The LORDI R10 represents the pinnacle of automation in modern industrial sewing. The core innovation lies in its 360-degree rotating head mechanism, which dynamically aligns with the sewing direction. This ensures that every single stitch remains flawless, beautiful, and completely balanced—effectively delivering continuous forward stitches while eliminating traditional backstitch imperfections.
Equipped with a dual-axis Double Screw Drive Mode, the machine offers exceptional mechanical stability and highly precise movement across its massive 1300x900 mm sewing bed. Operation is simplified via a clear, highly intuitive color LCD touchscreen panel. For maximum versatility, it supports an optional high-performance laser cutting device that cuts fabrics exceptionally flat, clean, and completely free of rough edges, streamlining the pocket, collar, or complex template preparation workflow.
Technical Specifications
| Specification Parameter | Details |
| Model | R10 |
| Sewing Range | 1300 x 900 mm |
| Laser Cut Range | 900 x 1100 mm |
| Stitch Length | 0.05 - 12 mm |
| Max Stitch No. | 30000 Stitches/pattern |
| Presser Foot Lifting Height | 13 mm |
| Maximum Speed | 3500 rpm |
| Measurements (Meas) | 225 x 115 x 162 cm |
| Weight | 648 Kg |
Key Features
360-Degree Head Rotation: The sewing head dynamically rotates a full 360 degrees to ensure all stitches are consistently beautiful forward stitches, entirely preventing uneven backstitches.
Double Screw Drive Mode: Built with a double screw drive system that provides superior mechanical stability and highly accurate frame movement.
Color LCD Touch Screen: Features a bright, color-coded digital touchscreen user interface that is highly intuitive and easy to operate for workshop personnel.
Optional Laser Cutting Device: Can be integrated with a precise laser cutter to deliver completely flat cuts with smooth, professional edges that do not fray.
