HP-600LFS (LSFS) fusing machine
Detailed Description

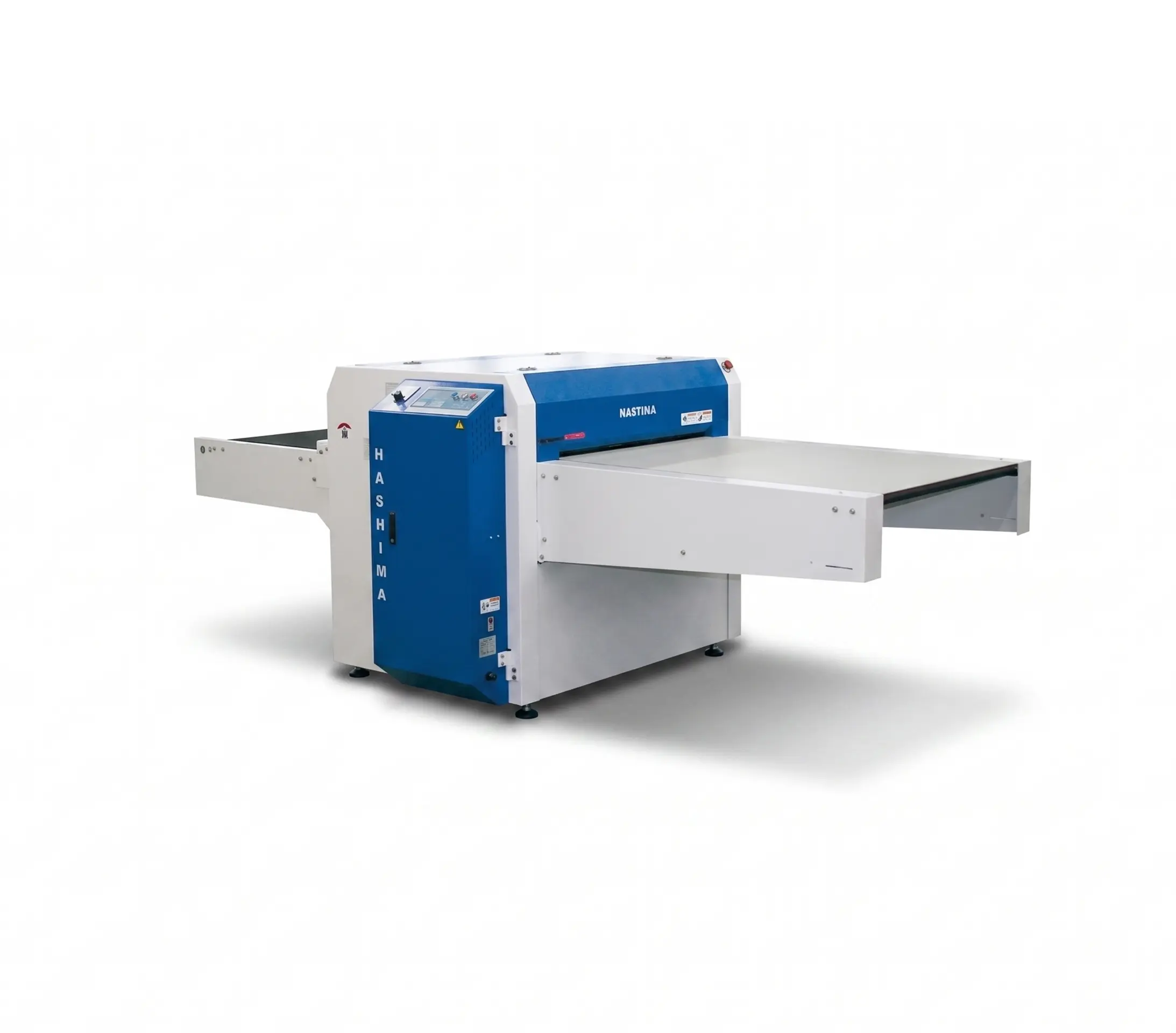

The Hashima HP-600LFS is engineered to meet the rigorous demands of modern textile and garment manufacturing. Equipped with an advanced electronic thermostat and a Solid State Relay (SSR) control system, it maintains temperature consistency within ±3°C, ensuring uniform heat distribution and preventing fabric distortion.
The machine's automatic belt warping prevention device protects the belts using a feedback system, minimizing maintenance and preventing downtime. The 600mm wide processing belt is designed for high-volume operations, and the machine allows for precise control of different heater zones to accommodate a wide variety of fabric types and interlinings. With an integrated strip-off device and robust construction, it provides exceptional durability and consistency.

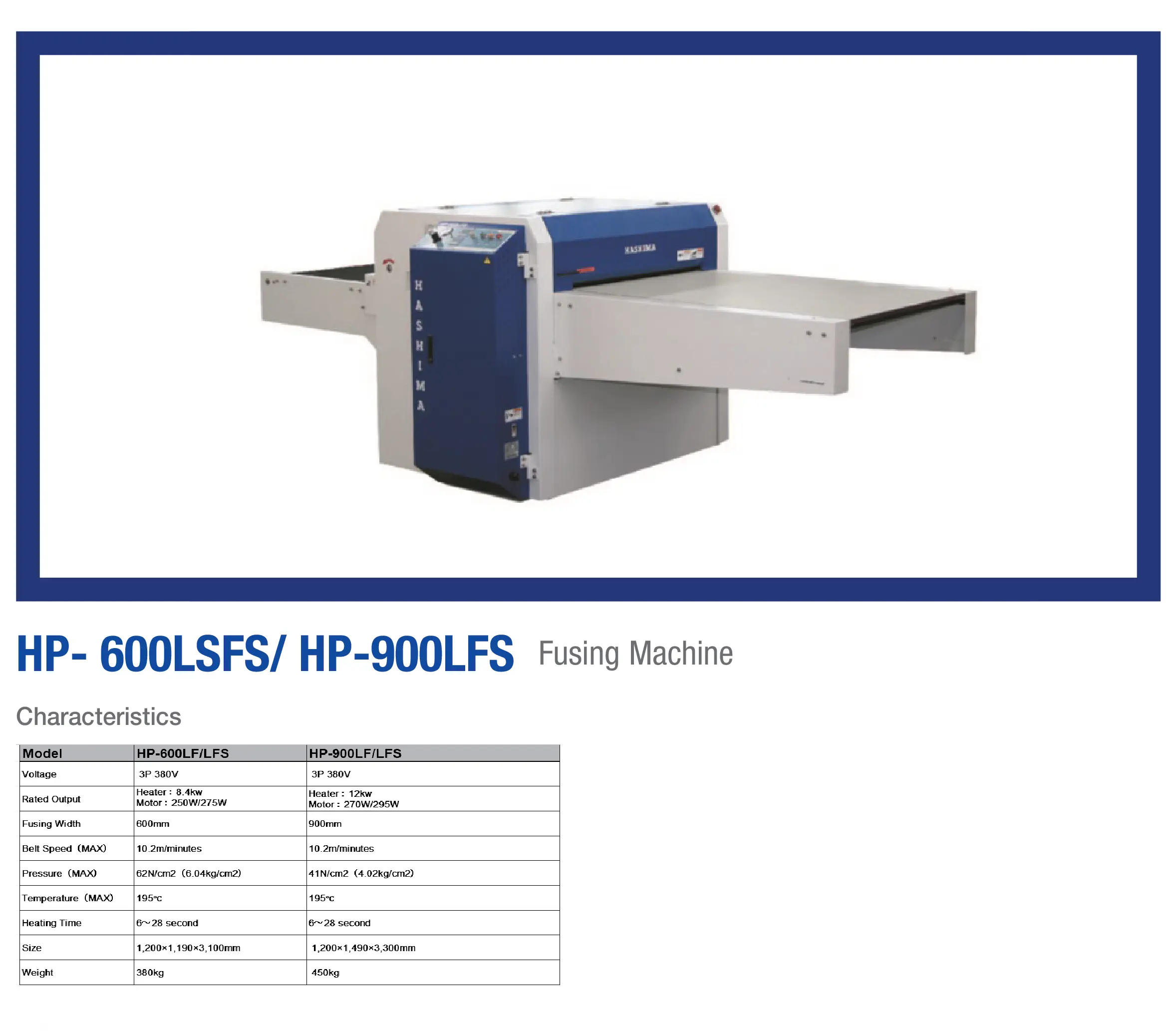

Technical Specifications
| Feature | Details / Value |
| Model | Hashima HP-600LFS |
| Voltage | 3P, 380V |
| Rated Output | Heater: 8.4 kW | Motor: 250W / 275W |
| Fusing Width | 600 mm |
| Belt Speed (MAX) | 10.2 m/min |
| Pressure (MAX) | 62 N/cm² (6.04 kg/cm²) |
| Temperature (MAX) | 195°C |
| Heating Time | 6 ~ 28 seconds |
| Dimensions (W x D x H) | 1,200 × 1,190 × 3,100 mm |
| Weight | 380 kg |
Key Features
Automatic Belt Warping Prevention: Employs a direct limit switch and feedback system to ensure belts remain properly aligned, extending their lifespan.
Precise Temperature Control: Uses electronic thermostats to keep the temperature difference within ±3°C for highly consistent bonding.
Zone Heater Control: Enables the operator to easily adjust the temperature of the upper and lower, as well as front and rear, heaters to suit various materials safely.
Rotary Strip-Off Device: Included as standard to prevent fabrics from sticking to the belts and ensure smooth, continuous processing.
High Production Efficiency: A continuous straight-linear design greatly increases output levels for high-volume factories.
Durable Construction: Built with a special hard-alumite-coated heating plate and silicon rubber rollers to ensure longevity and high-quality results.
