HP-450MS Fusing machine
Detailed Description

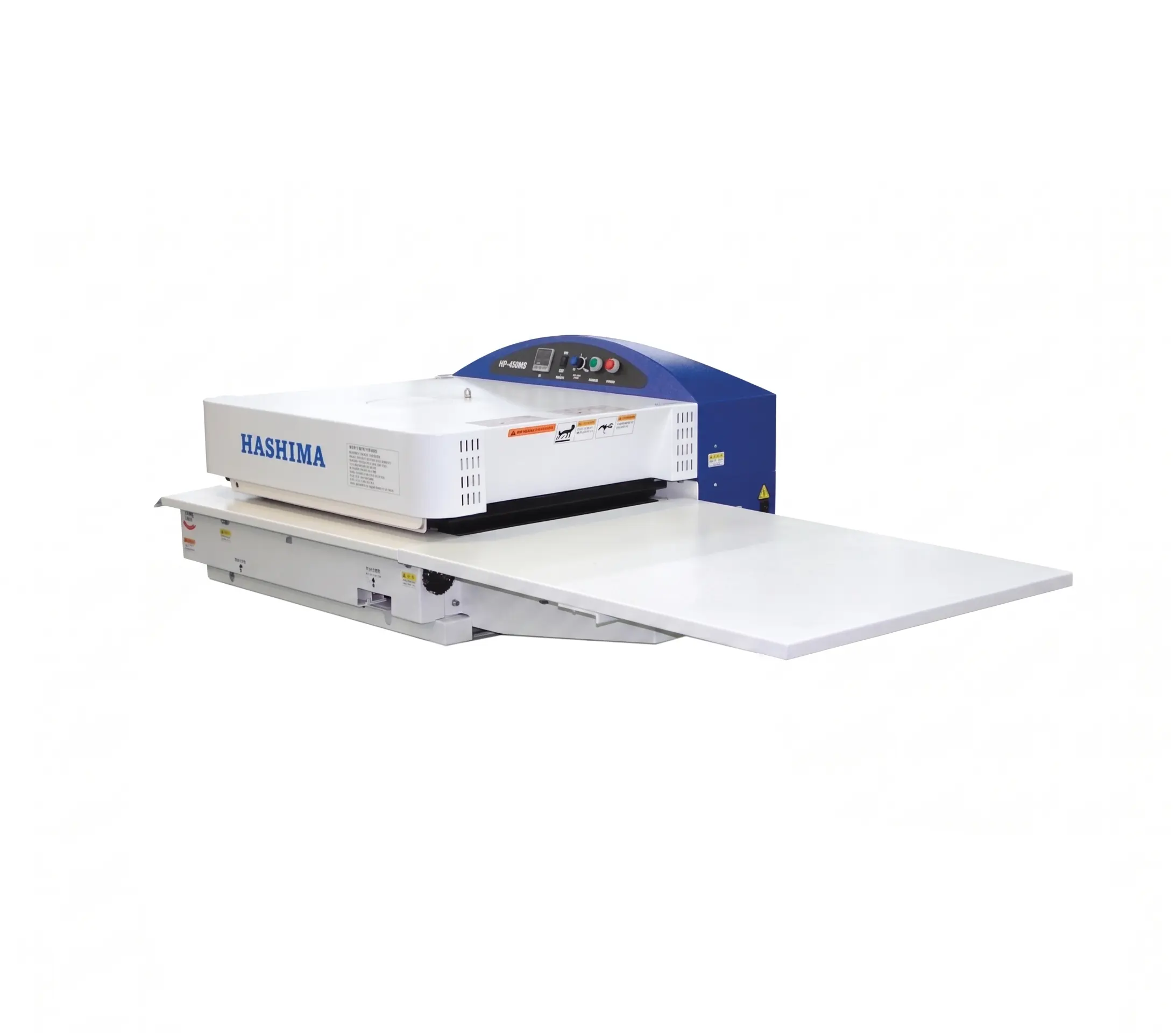

The Hashima HP-450MS is an advanced compact fusing press machine designed to streamline and improve garment production processes. Using precise heat and pressure, it fuses fabric layers together to add structure and durability to apparel. Engineered by Hashima with decades of technological expertise, this model features an increased fusing width of 450mm and rubber driving rollers for non-slip operation. It is also equipped with a rotary strip-off device as standard to ensure smooth separation of materials. With a maximum temperature of 195°C and adjustable heating times, the HP-450MS delivers consistent, high-quality results while taking up minimal floor space in your production facility.

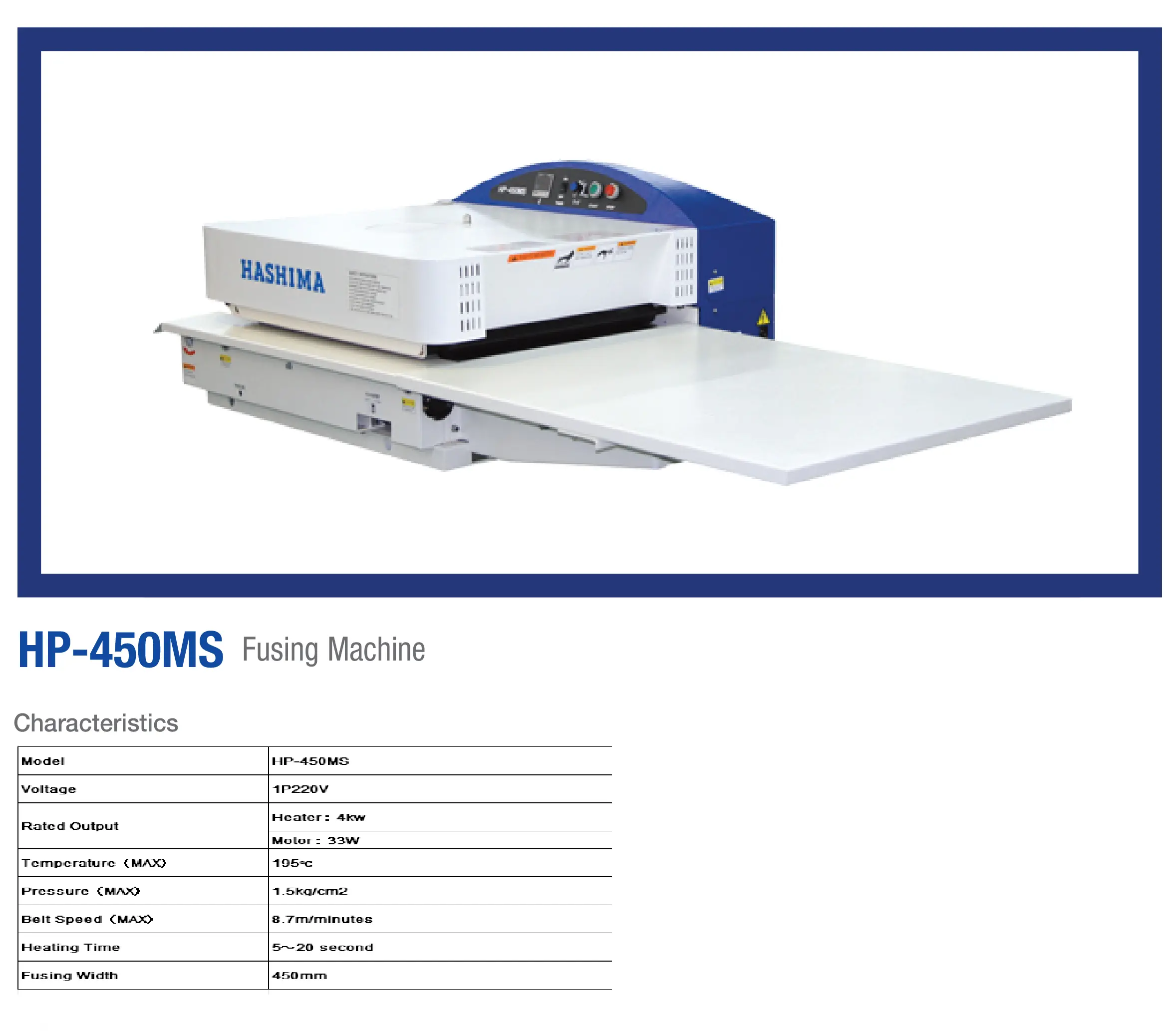

Technical Specifications
| Feature | Details |
| Model | HP-450MS |
| Brand | Hashima |
| Voltage | 1P 220V |
| Rated Output (Heater) | 4 kW |
| Rated Output (Motor) | 33 W |
| Fusing Width | 450 mm |
| Max. Temperature | 195°C |
| Max. Pressure | 1.5 kg/cm² |
| Max. Belt Speed | 8.7 m/min |
| Heating Time | 5 ~ 20 seconds |
| Dimensions (W x D x H) | 1660 × 880 × 490 mm |
| Weight | 152 kg |
| Standard Accessory | Rotary strip-off device |
Key Features
Automatic Belt Warping Prevention Device: Employs a direct limit switch system to ensure the upper and lower belts remain properly aligned, extending belt lifespan.
Rotary Strip-Off Device: Equipped as standard to prevent materials from sticking to the belts and ensure smooth, continuous output.
Non-Slip Rubber Driving Rollers: Provides stable belt movement and prevents slippage during operation.
Compact Footprint: Space-saving design that delivers high output without requiring excessive floor space.
Adjustable Parameters: Easy control of temperature, pressure, and belt speed to match various fabric and fusing requirements.
