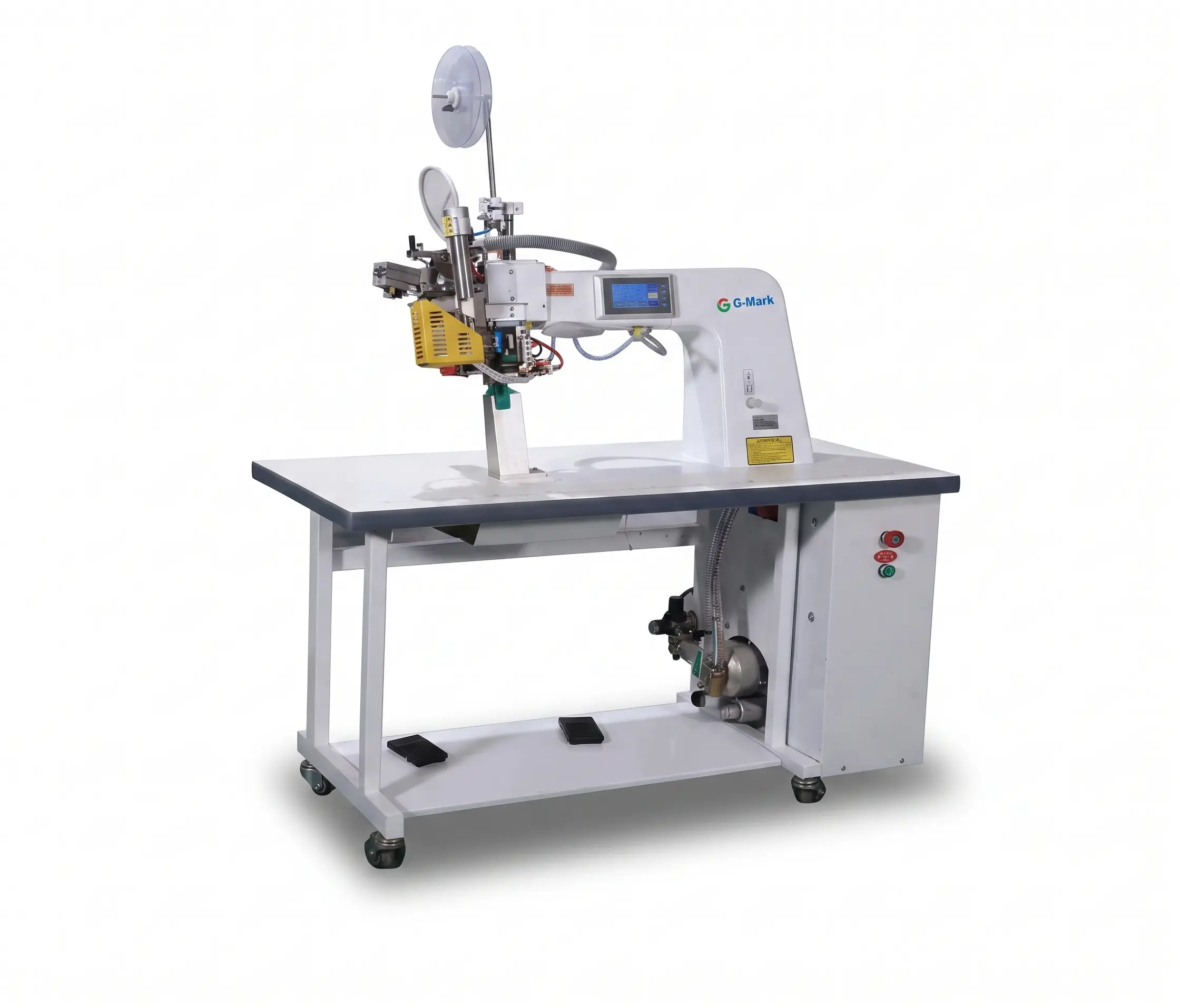

GM-930TD Hot Air Seam Sealing Machine
Detailed Description
This industrial-grade Hot Air Seam Sealing Machine (Model: GM-930TD) by G-Mark is engineered for high-efficiency seam sealing applications. It features a modern PLC system with a high-definition touch display that allows operators to easily monitor and program speed and operations. With an emphasis on safety and precision, the machine includes an automatic temperature control system that maintains stability within a 1°C fluctuation limit, complete with an upper temperature alarm to protect the heat pipe. Built on a sturdy wheeled frame with foot pedal controls, it ensures optimal workflow comfort and flexibility for manufacturing protective apparel and outdoor gear.
Technical Specifications
| Parameter | Value |
| Model | GM-930TD |
| Power | AC 220V 50/60Hz |
| Rated Power | 3 KW |
| Heating Power | 2.7 KW (Note: Typo 'Meating' in image corrected to Heating) |
| Speed | 1-20m/min |
| Compressed Air | 0.35~0.5 Mpa (Note: Typo 'Compressed' in image corrected) |
| Upper Pressure Wheel Lift Distance | 10-13mm |
| Size | L 1250mm × W 610mm × H 1550mm |
| Net Weight | 115kg |
Key Features
Adopt PLC easy to read: High-definition touch multi-function display, which shows the speed, operation, and programming more clearly.
Automatic temperature control: High stability with temperature fluctuations within 1°C. Features an upper temperature alarm design for the protection of the heat pipe.
User-Friendly Operation: Equipped with foot pedals for easy control and a spacious worktable.
