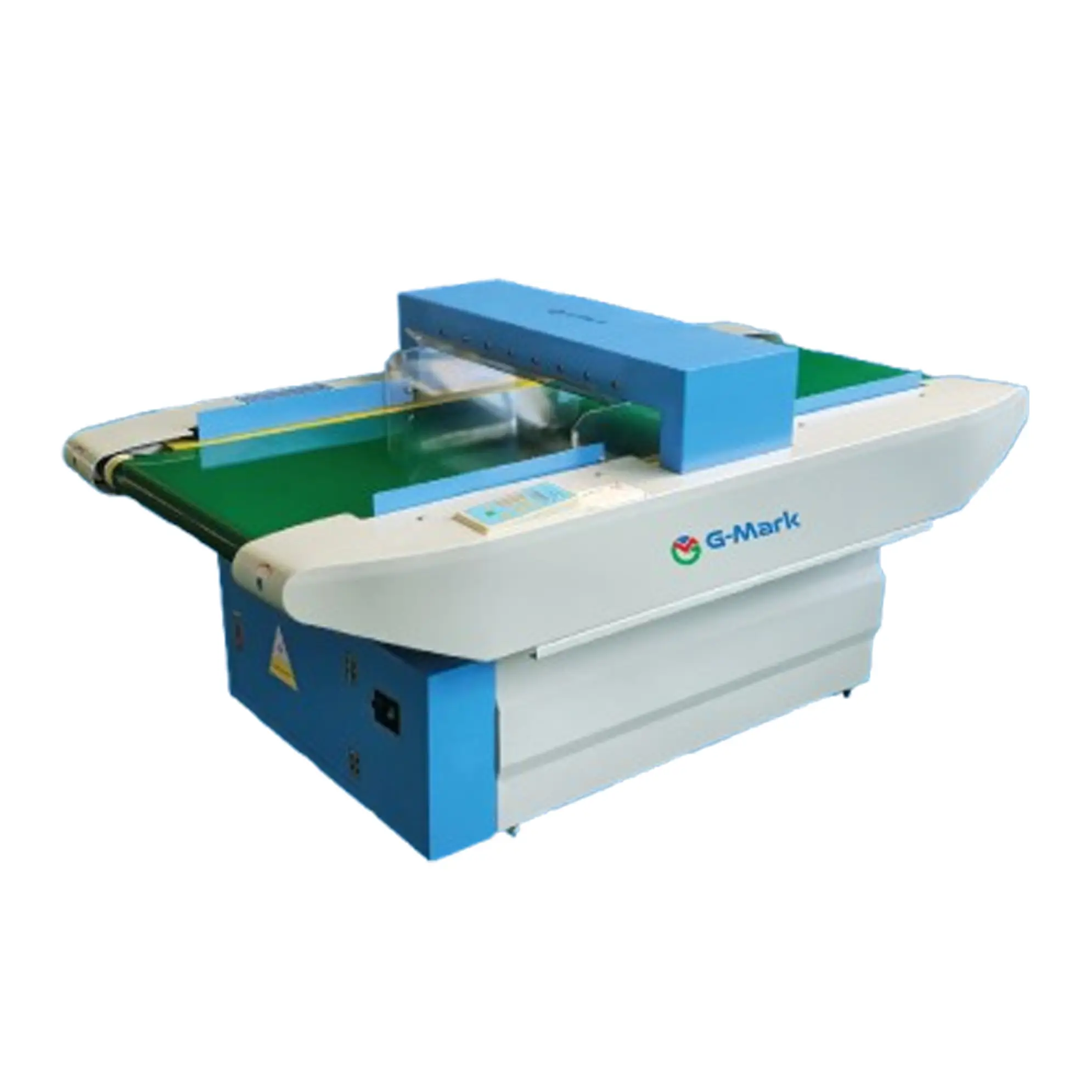

GM-780G-S Automatic Needle Detector
Detailed Description
The G-Mark GM-780G-S Automatic Needle Detector is a reliable and high-performance solution for detecting broken needles and metal contaminants in garments and other products. Designed for industries such as apparel, food, and medical manufacturing, this machine ensures strict quality control and safety compliance.
Equipped with an advanced 32-bit RISC processing system, the GM-780G-S delivers precise detection and accurate reporting. Its magnetic induction detection method ensures high sensitivity, capable of identifying even small metal fragments.
\r\n\r\n
The machine features an easy-to-use touchscreen interface, allowing operators to control and monitor operations efficiently. With automatic alarm and position indication, it quickly identifies contaminated areas, helping reduce errors and improve productivity.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | GM-780G-S |
| Detecting Sensitivity | Fe ≥ 0.8 mm |
| Detecting Width | 600 mm |
| Detecting Height | ≤ 120 mm |
| Detecting Method | Magnetic Induction |
| Operation Method | Touchscreen Control |
| Power Requirement | AC 220V ±10% (50–60 Hz) |
| Alarm System | Luminous position display |
| Data Output | Supports printing (Chinese & English) |
| Power Consumption | 100 W |
| Packing Size | 1920 × 1150 × 1080 mm |
| Net / Gross Weight | 175 / 260 kg |
Key Features
