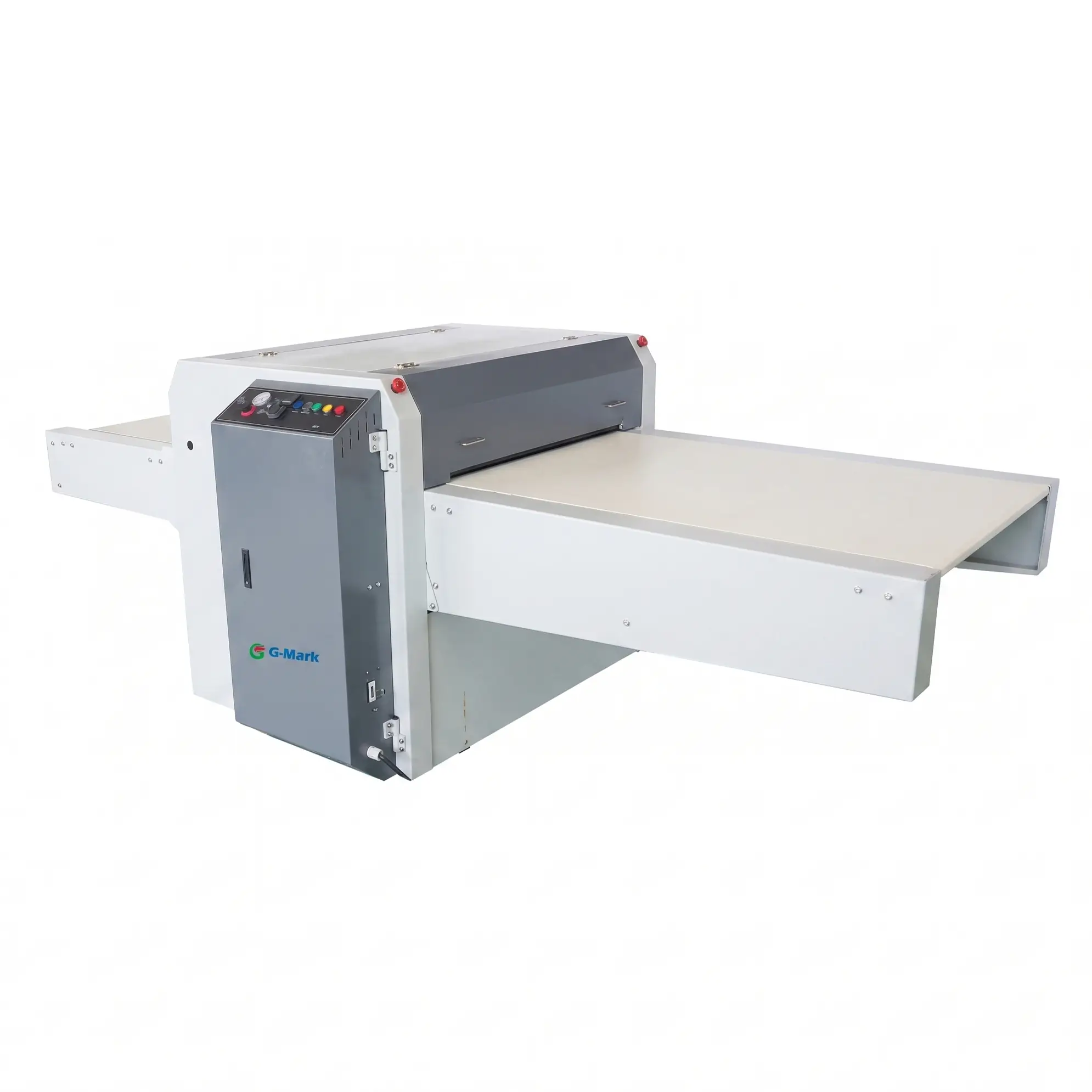

GM-600LCS / GM-900LCS Pneumatic Fusing Press Machine
Detailed Description
The G-Mark GM-LCS Series Pneumatic Fusing Press Machines are built to deliver high-performance fusing with exceptional consistency and efficiency. Designed with a snake-shaped conveyor system, these machines effectively eliminate material deviation, ensuring precise alignment during operation.
The advanced pneumatic pressing system provides stable and uniform pressure, making it ideal for a wide range of fabrics and interlinings. Equipped with a durable Teflon belt, the machine supports both single and double-sided pressing, while the new stripping system ensures smooth fabric release after fusing.
\r\n\r\n
With both automatic and manual stop functions, operators have full control over the production process. Available in 600mm and 900mm widths, the GM-LCS series is suitable for medium to large-scale garment manufacturing operations.
Technical Specifications
| Model | Voltage | Heating Power | Motor Power | Temperature Range | Pressure | Belt Speed | Fusing Width (mm) | Packing Size (mm) | Net/Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| GM-600LCS | 3 Phase 380V | 10 kW | 200 W | 50–200°C | 0–4.5 kg/cm | 0–10 m/min | 600 | 2490×1390×1460 | 350 / 420 |
| GM-900LCS | 3 Phase 380V | 12 kW | 200 W | 50–200°C | 0–4.5 kg/cm | 0–10 m/min | 900 | 2560×1670×1460 | 400 / 480 |
