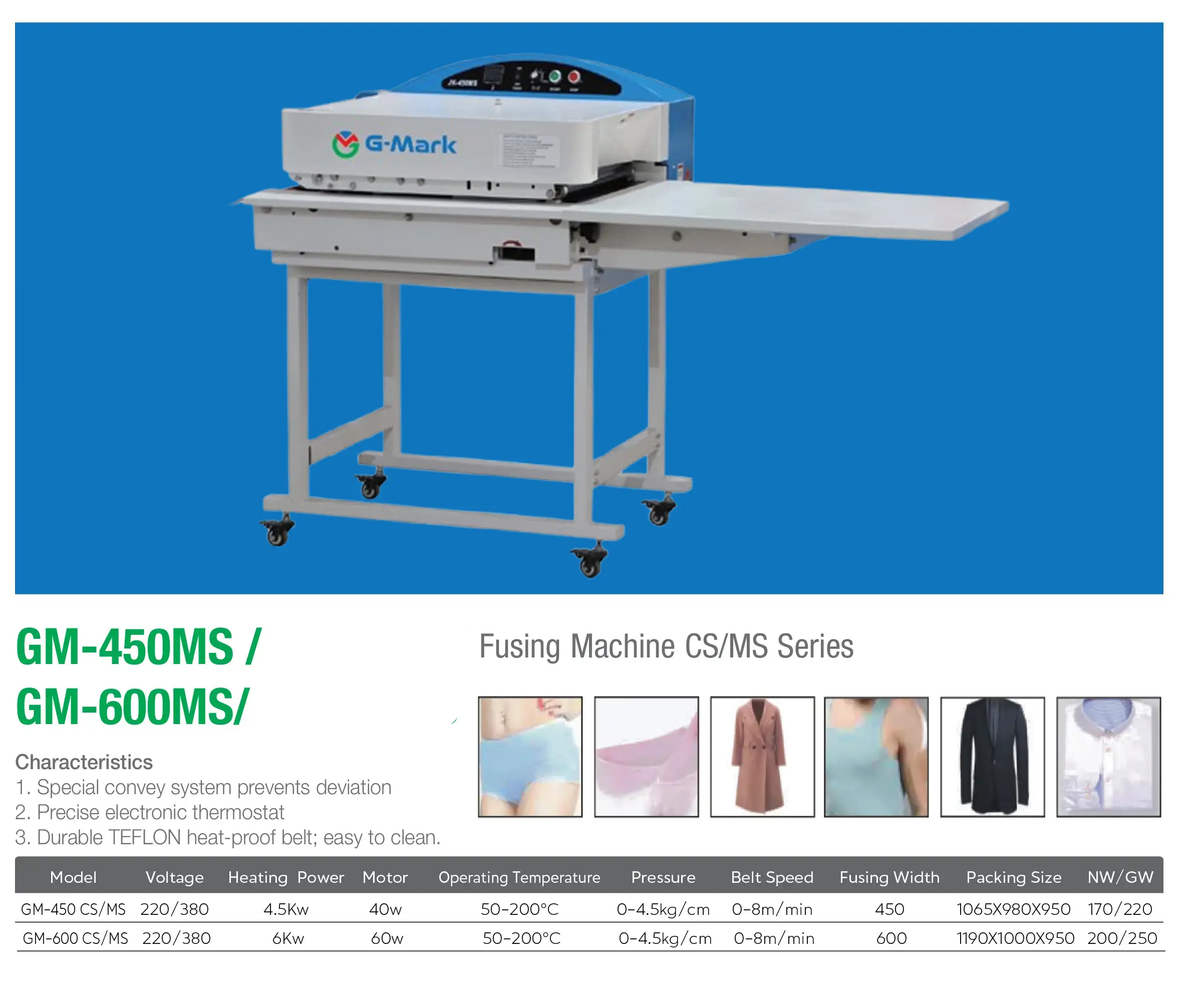

GM-450MS / GM-600MS Fusing Machine
Detailed Description
The G-Mark GM CS/MS Series Fusing Machines are engineered to deliver consistent and high-quality fusing results for modern garment manufacturing. Designed with an advanced conveyor system, these machines ensure stable fabric movement without deviation, resulting in precise bonding every time.\r\n\r\nEquipped with a precise electronic thermostat, the machines maintain accurate temperature control within a wide operating range, making them suitable for different materials and interlinings. The durable Teflon heat-resistant belt ensures smooth operation, easy maintenance, and long service life.\r\n\r\nAvailable in multiple models (450mm, 500mm, and 600mm widths), the GM Series offers flexibility to meet various production needs—from small workshops to large-scale industrial factories.
Technical Specifications
| Model | Voltage (V) | Heating Power | Motor Power | Temperature Range | Pressure | Belt Speed | Fusing Width (mm) | Packing Size (mm) | Net/Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| GM-450CS/MS | 220 / 380 | 4.5 kW | 40 W | 50–200°C | 0–4.5 kg/cm | 0–8 m/min | 450 | 1065×980×950 | 170 / 220 |
| GM-500CS/MS | 220 / 380 | 5 kW | 40 W | 50–200°C | 0–4.5 kg/cm | 0–8 m/min | 500 | 1065×980×950 | 180 / 230 |
| GM-600CS/MS | 220 / 380 | 6 kW | 60 W | 50–200°C | 0–4.5 kg/cm | 0–8 m/min | 600 | 1190×1000×950 | 200 / 250 |
Key Features
Special conveyor system prevents material deviation\r\nPrecise electronic thermostat for accurate temperature control\r\nDurable Teflon heat-proof belt, easy to clean and maintain\r\nUniform pressure distribution for consistent bonding\r\nAdjustable speed for different production requirements\r\nSuitable for a wide range of fabrics and interlinings\r\nStrong and stable machine structure for long-term use
