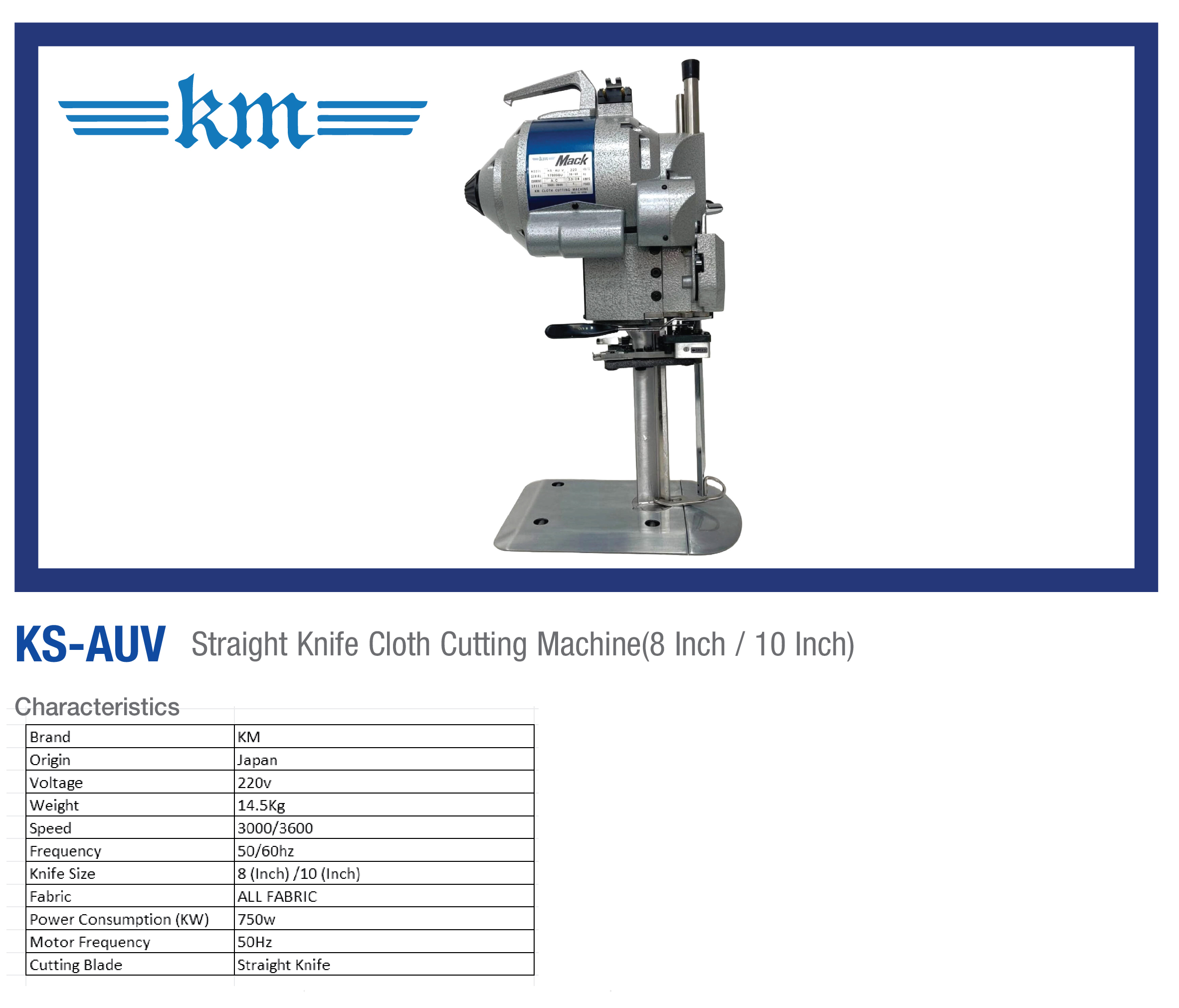

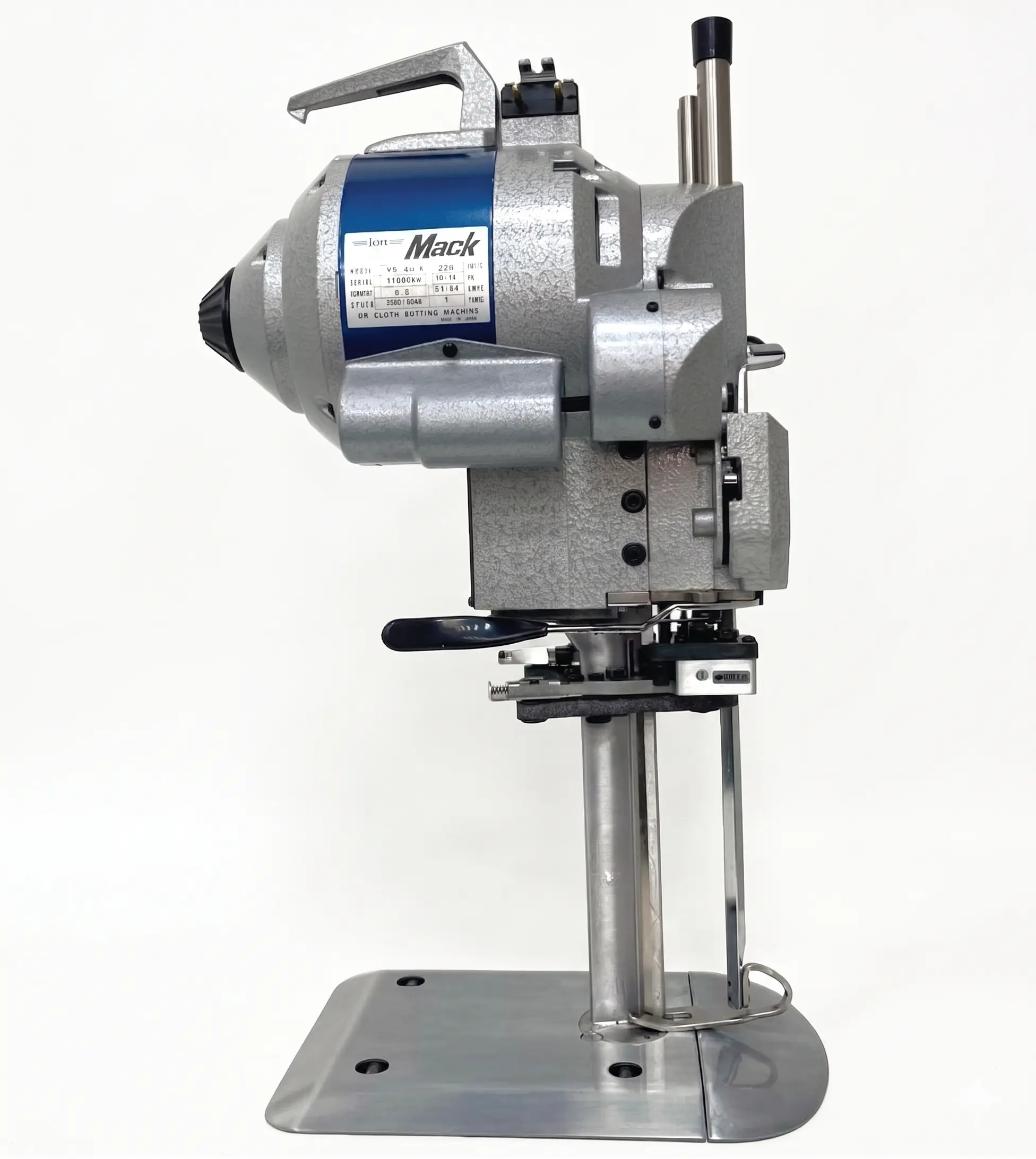

KS-AUV straight knife cloth cutting machine
Detailed Description
The KM KS-AUV series is recognized worldwide as the industry standard for straight knife cloth cutting. Engineered with a uniquely developed, high-power industrial motor, the machine delivers excellent cutting capability while maintaining a low motor temperature for continuous, comfortable operation.
Equipped with an automatic abrasive belt sharpener, the blade can be honed at a constant angle with the simple press of a lever, ensuring razor-sharp precision at all times. The base plate is low and ultra-smooth, allowing material to glide effortlessly before and after cutting, while the low-resistance stand reduces drag on thick fabric layers. It is the perfect tool for cutting knits, denim, synthetics, and leather.
Technical Specifications
| Feature | Details / Value |
| Model Variants | KS-AUV 6\" / 8\" / 10\" / 13\" |
| Brand | KM / Hashima |
| Power Supply | 1P 100V ~ 240V / 220V |
| Motor Power | 300W / 500W |
| Blade Sizes | 6 inches to 13 inches |
| Cutting Capacity | 110 mm (6\") to 290 mm (13\") |
| Strokes per Minute | 3,000 ~ 3,600 RPM |
| Weight | Approx. 14.5 kg |
Key Features
Originally Developed Motor: Provides strong, consistent cutting power with minimal heat generation for extended use.
Automatic Sharpening System: Built-in abrasive belt sharpener hones the blade to a perfect, constant angle with the touch of a lever.
Built-in Auto-Lubrication: Automatically supplies oil from an internal reservoir to the guide mechanisms, ensuring durability and clean internal parts.
Smooth, Low-Profile Base Plate: Reduces friction so multiple layers of fabric can travel seamlessly across the table.
Low-Resistance Stand: Designed to minimize drag, providing superior maneuverability through thick, layered materials.
Versatile Application: Capable of cutting a wide range of materials, including cotton, synthetics, denim, and synthetic leather.
