HW-20C Thread Winder-Recone Machine
Detailed Description
The HASHIMA Thread Winder-Recone Machine Series is engineered to enhance utility and minimize waste in industrial embroidery and sewing sectors. Very often, large cones of thread need to be split or rewound into smaller, equal packages for multi-needle setups or individual workstations; this series accomplishes that task with exceptional uniformity.
Operating at a consistent speed of 1380 rpm, both the HW-20C ensure tightly controlled, neatly wound cones that reduce thread-breakage risks during subsequent sewing phases. Its user-friendly layout utilizes a single-phase connection, meaning it is ready to deploy on any standard workshop outlet. Backed by HASHIMA's reputation for rugged manufacturing hardware, these winding systems are vital auxiliary tools for maintaining seamless workflow logistics on the production floor.

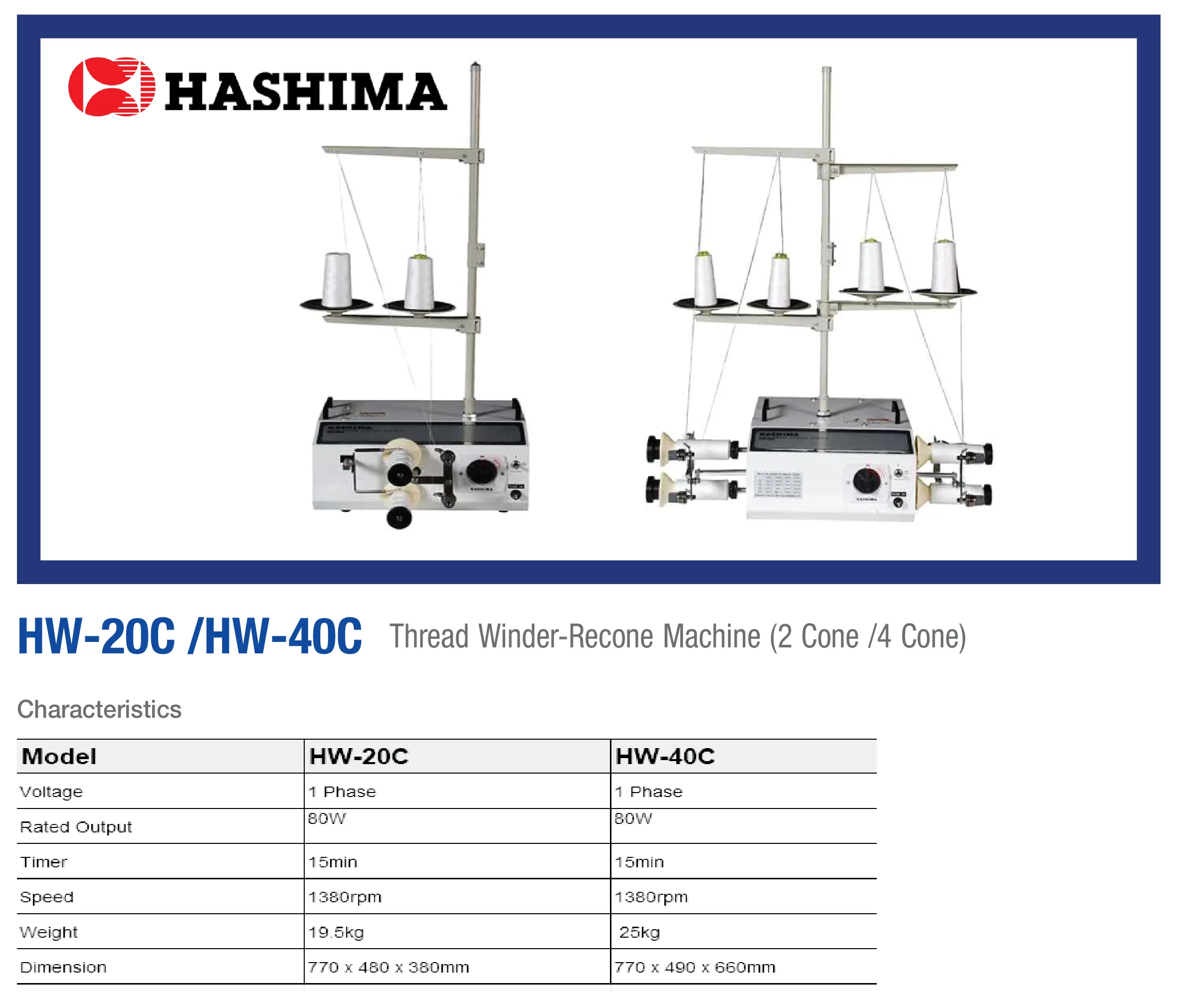

Technical Specifications
| Specification | HW-20C (2 Cone) |
| Voltage | 1 Phase |
| Rated Output | 80W |
| Timer | 15 min |
| Speed | 1380 rpm |
| Weight | 19.5 kg |
| Dimension | 770 x 480 x 380 mm |
Key Features

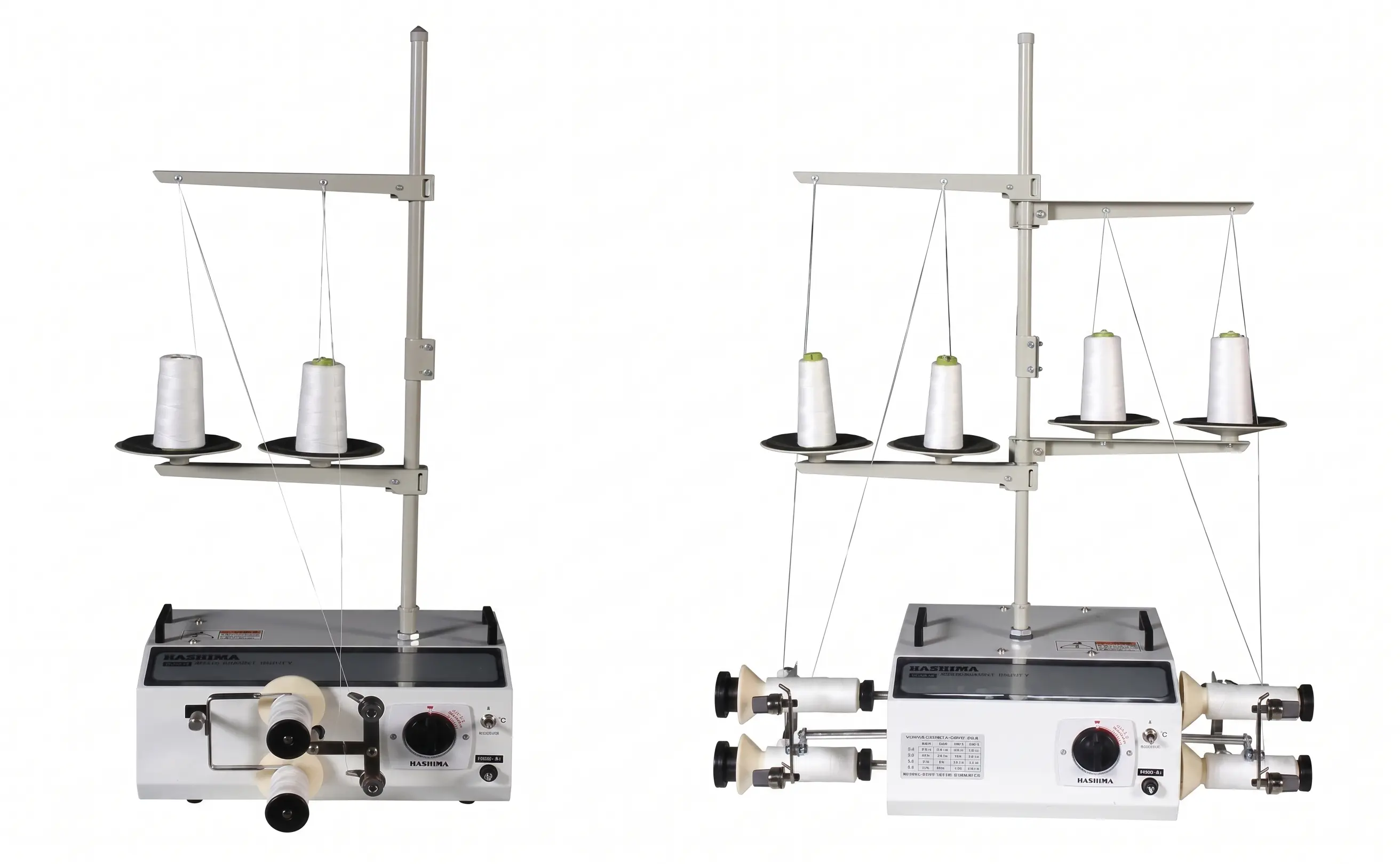

Dual Model Configurations: Available in 2-cone (HW-20C) and 4-cone (HW-40C) setups to match varying production scale requirements.
Integrated Timer Control: Built-in 15-minute timer ensures precise operational control and prevents overwinding.
Energy-Efficient Output: Runs on a low-consumption 80W rated output, optimizing utility efficiency in continuous industrial environments.
Stable Thread Guide Mast: Features a sturdy vertical thread tree assembly for smooth, tangle-free winding from source spools.
Compact Footprint: Space-saving benchtop design that integrates easily into existing workshop setups without sacrificing valuable floor space.
