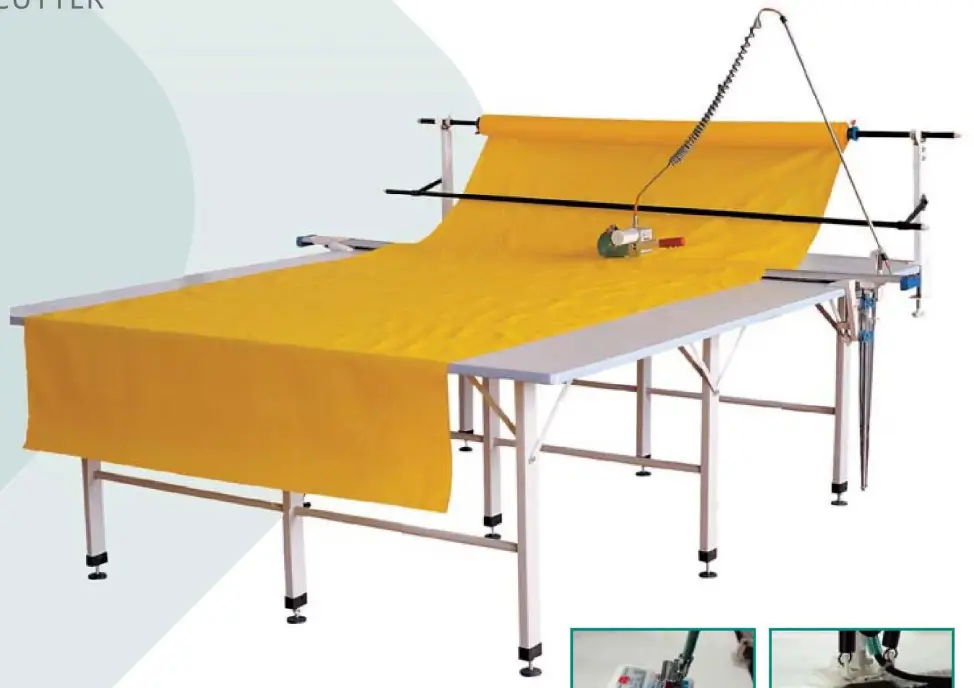

GM-DB-1 (Manual End Cutter)
Detailed Description
This manual end cutter is an ideal cutting solution for a wide range of materials, including cotton, linen, silk, wind coat cloth, oilskin cloth, plastic cloth, plastic film, plastic leather, nylon, polyester, T/C, T/R, and canvas
It is designed to be time-saving, labor-saving, and material-saving while ensuring simple operation
Technical Specifications
| Parameter | Specification Details |
| Model | GM-DB-1 |
| Power | $160\text{ W}$ |
| Voltage | $110 / 220\text{ V}$ |
| Frequency | $50 / 60\text{ Hz}$ |
| Cutting Width | $1.2 - 3.0\text{ m}$ |
| Cutting Capacity | $9\text{ mm}$ |
| Rail Length | $1.6 - 3.6\text{ m}$ |
| Rotate Speed | $12000\text{ r.p.m}$ |
| Gross Weight | $22.2\text{ kg}$ |
| Packing Size | $760 \times 460 \times 190\text{ mm}$ |
| Packing Size of Accessory | $142 \times 420 \times 1300\text{ mm}$ $142 \times 420 \times 1600\text{-}3600\text{ mm}$ (Rail) |
Key Features
Single-Man Operation: Efficiently designed to be operated by a single person
Automatic Cutter Return: The cutting head returns automatically via an elasticity/spring device
Intelligent Counter: Fitted with an intelligent counting device for precise tracking
Premium Base Plate: The base plate is made of high-quality special steel that resists abrasion and is fitted with 4 imported mini-bearings
Elasticity-Return Wire Device: The power wire setup includes an elasticity-return device to eliminate wire swinging and prevent breakages
Automatic Blade Grinding: High-rotating speed motor automatically grinds the blade in a single direction
Resource Efficient: Highly time-saving, effort-saving, material-saving, and user-friendly
Handle Options: Available in Standard and Long-arm Option
Stand Plate Options: Comes with a Standard plate ($10.9\text{ cm}$) or a Heavy-Duty Option ($11.5\text{ cm}$) for thick materials
